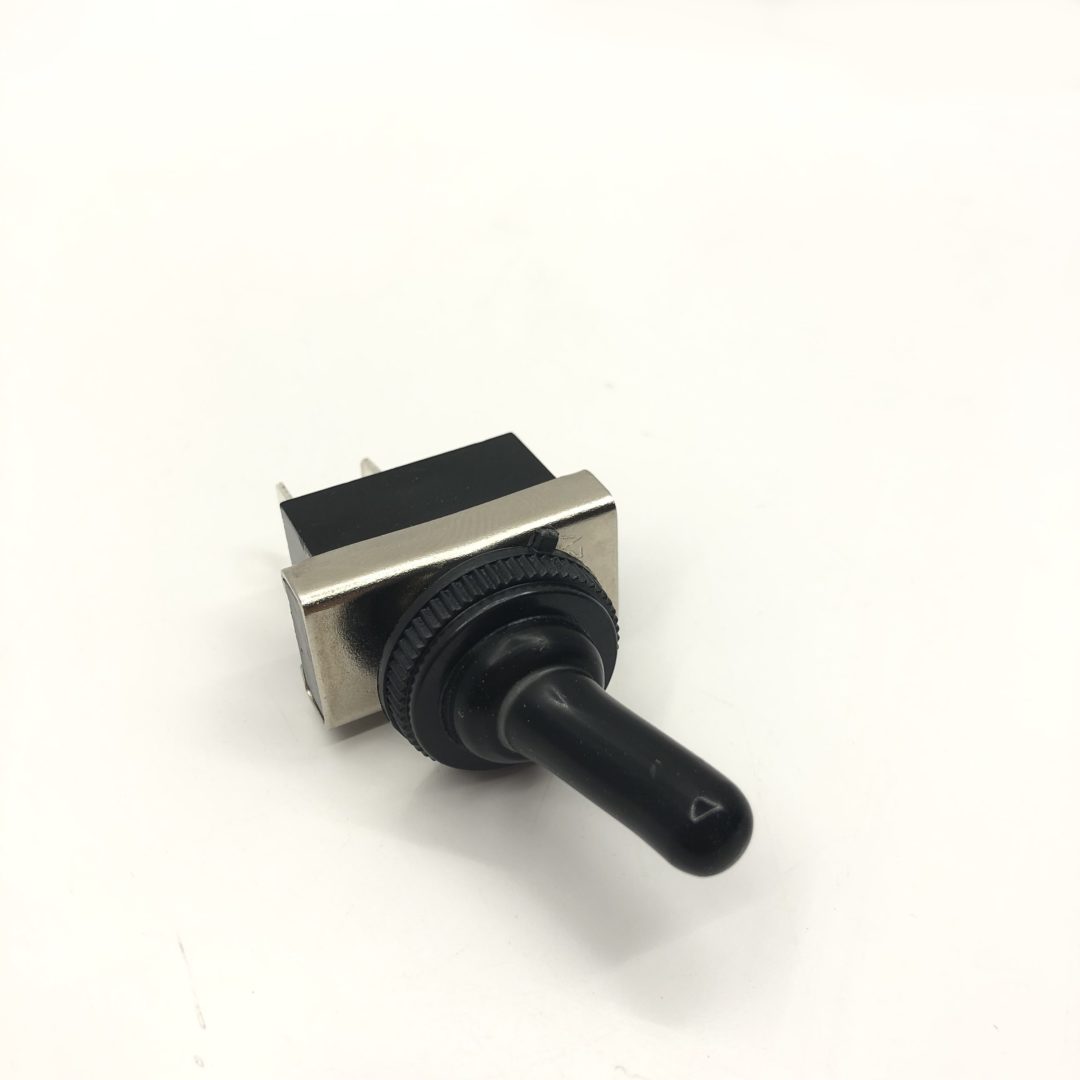

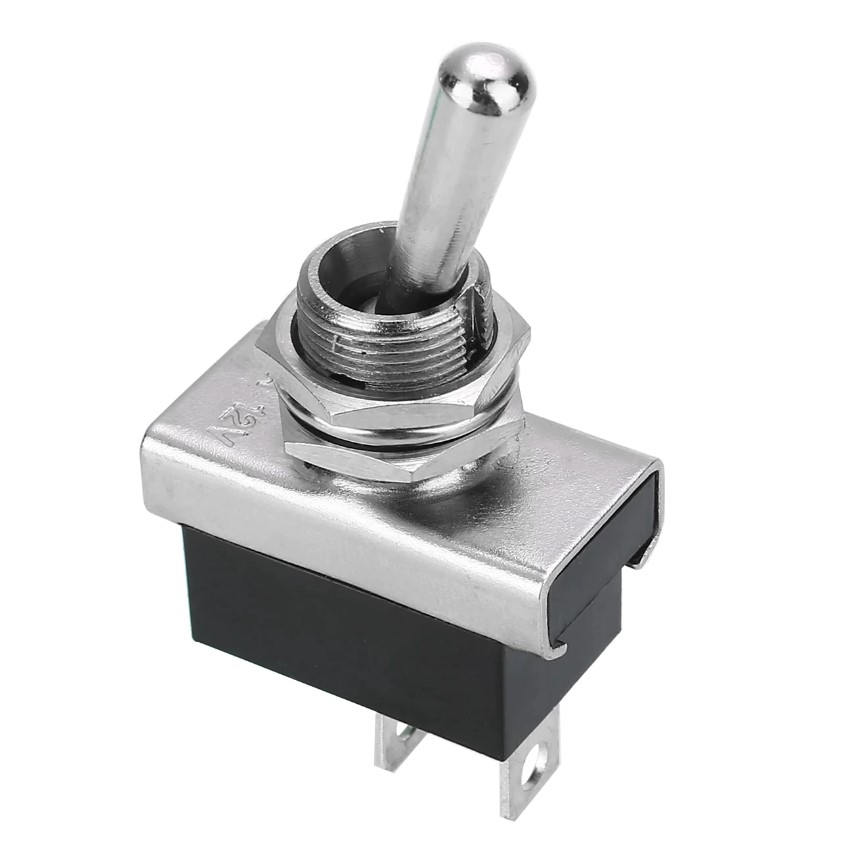

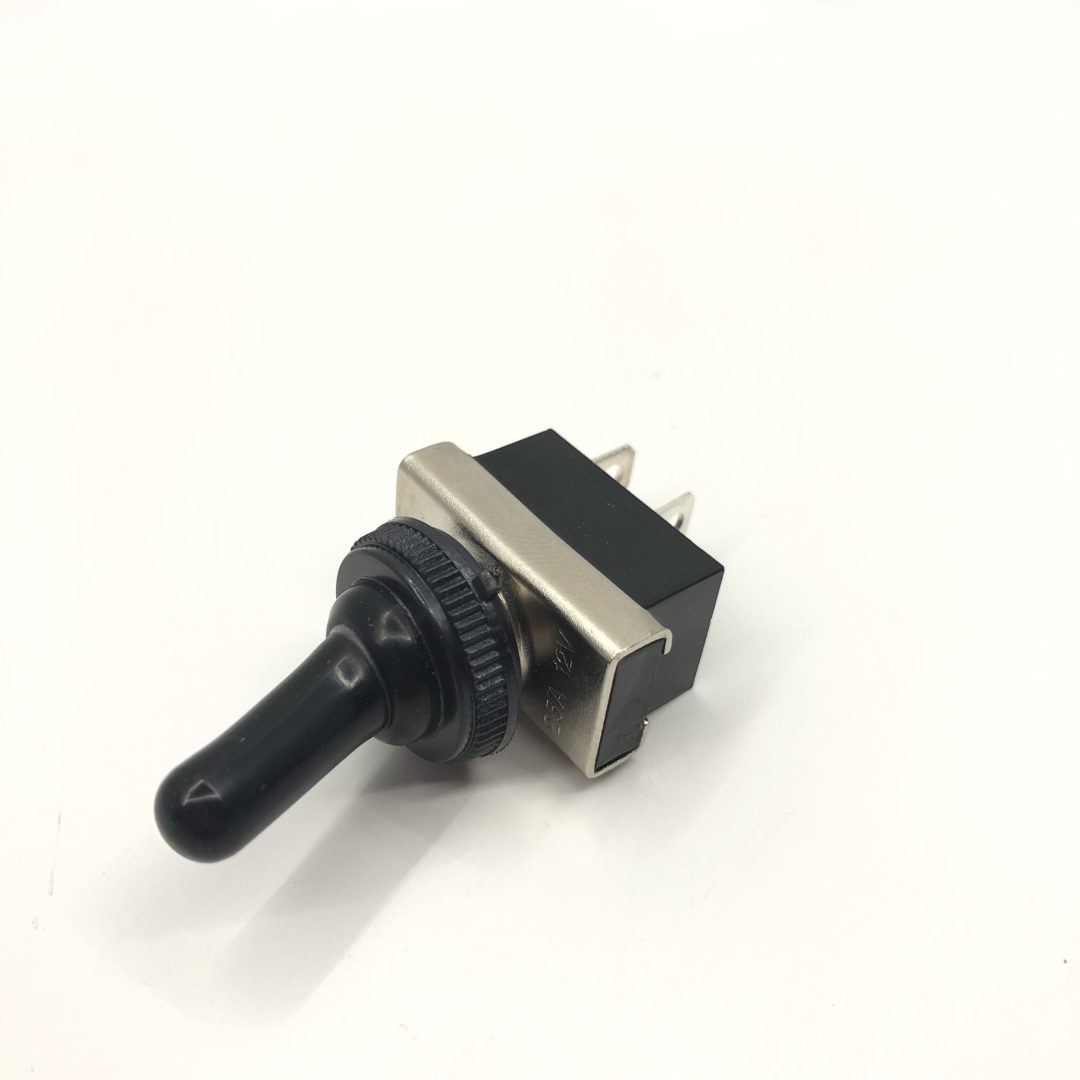

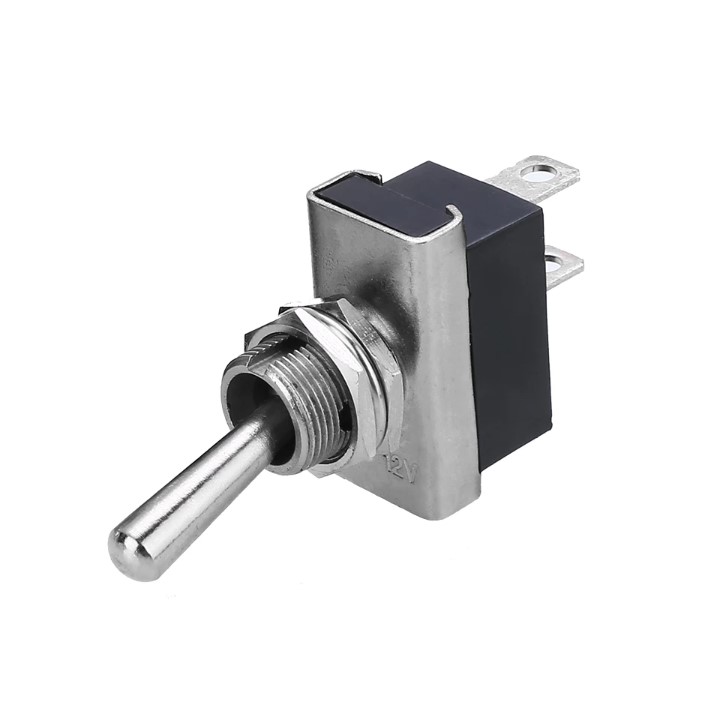

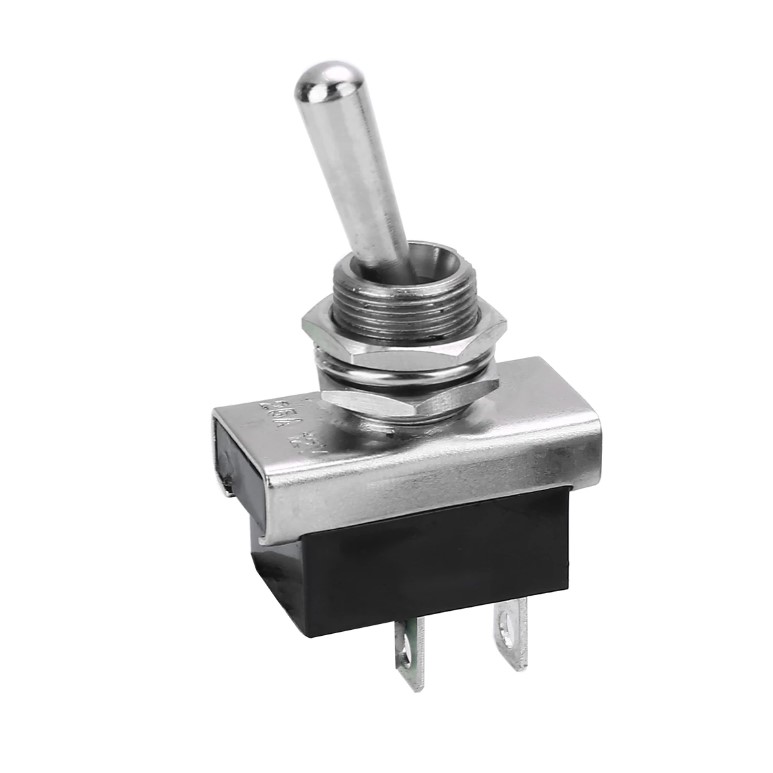

12V 25 Amp “Toggle Switch” for electrical circuits
12V ON / OFF lever switch
Widely used for automotive, agricultural and industrial electrical circuits.
Thanks to its robust contact, you can control devices up to 25 amps without using a control relay.
- LED headlights and light strips
- Windscreen wipers
- Electric window lifters
- Electric water pumps
- Small electric fans
Technical specifications:
- Maximum current: 25 amps
- Maximum voltage: 48 Volts
- Overall length: 55mm
- Body width: 15mm
- Hole diameter: 12.5mm
- IP55 sealing
- Contacts held
- Flat lugs 4.8mm

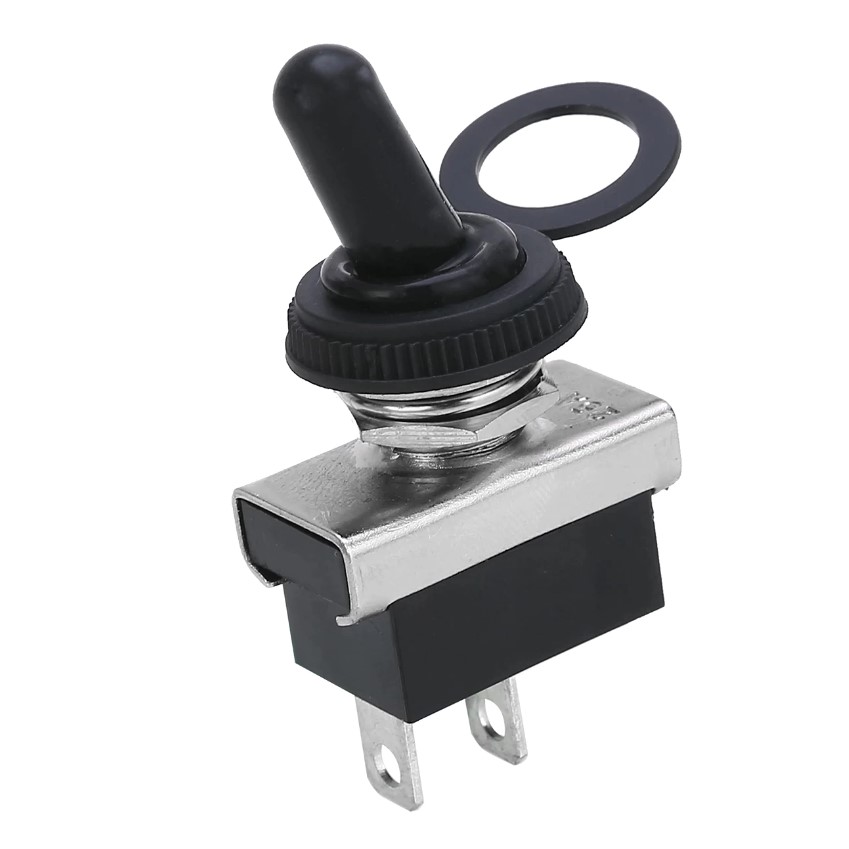

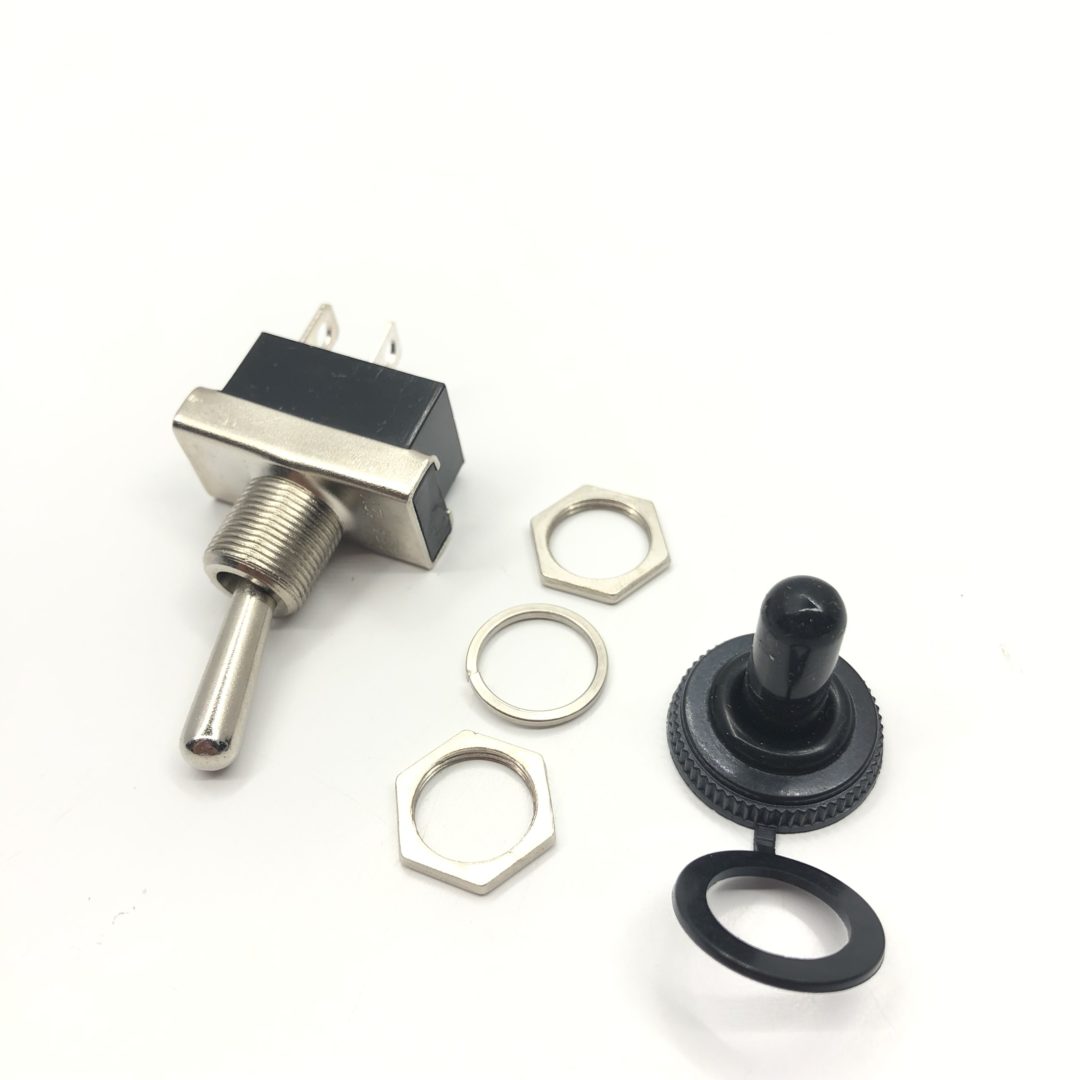

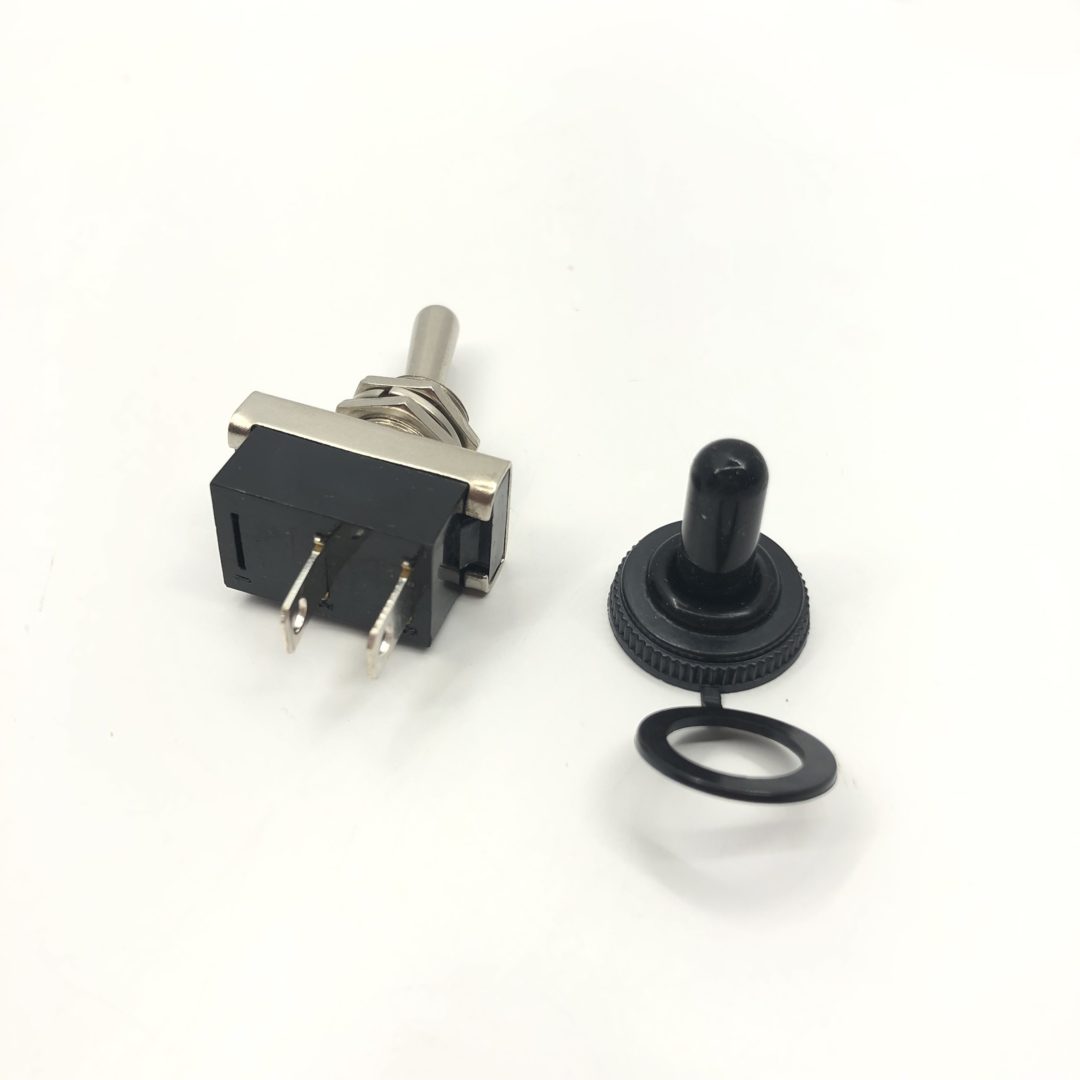

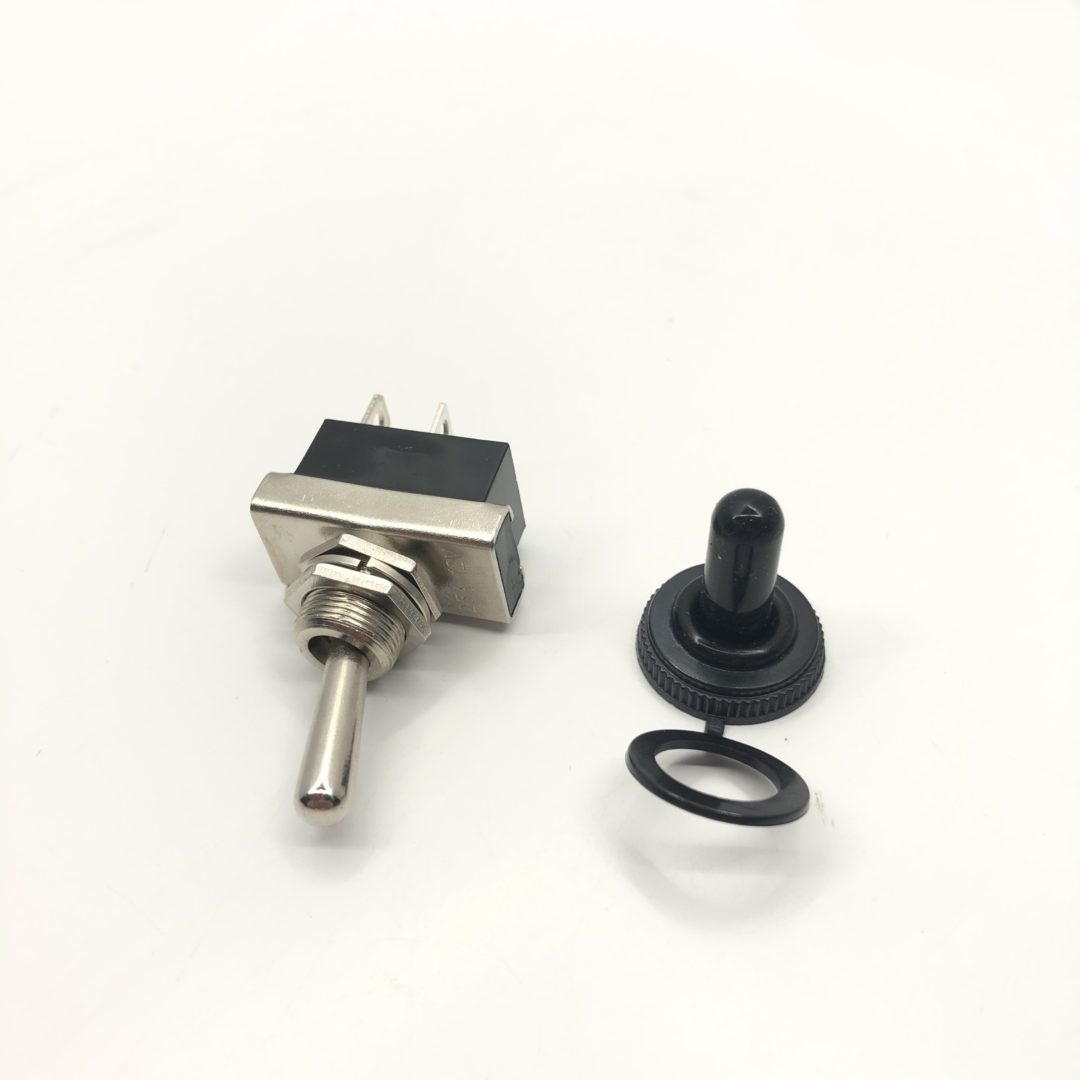

Supplied with a flexible rubber cap to screw onto the lever. For improved sealing and outdoor use.
| Weight | 0,1 kg |
|---|
