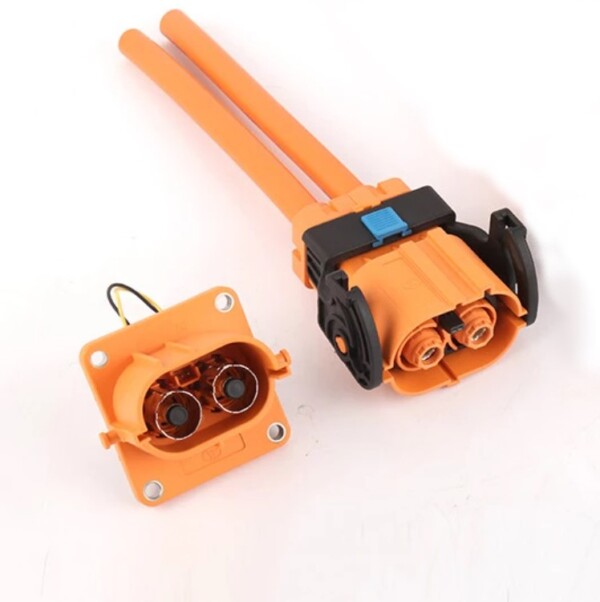

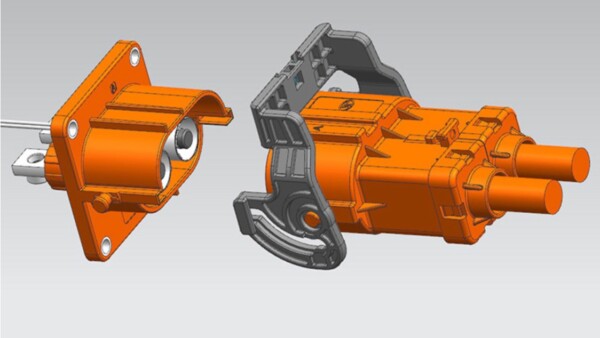

High-power 2-way electrical connector
175-amp quick-disconnect.
Pass power through your partitions, while retaining the advantage of a quick connection.
We recommend using these connectors to connect your appliances with a maximum current of 175 amps.
- Supply power to a powerful electric motor
- Connecting an electric car battery
- To power a high-power electrical appliance (380V motor, industrial fan, etc.)
Brand: DISCOUNT AUTOSPORT
These connectors have a high quality design.

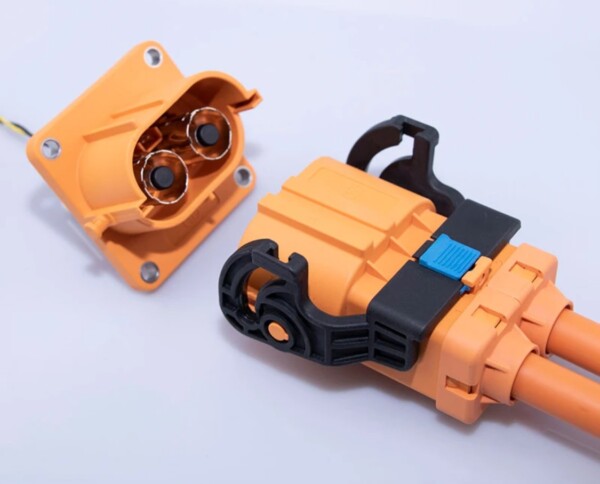

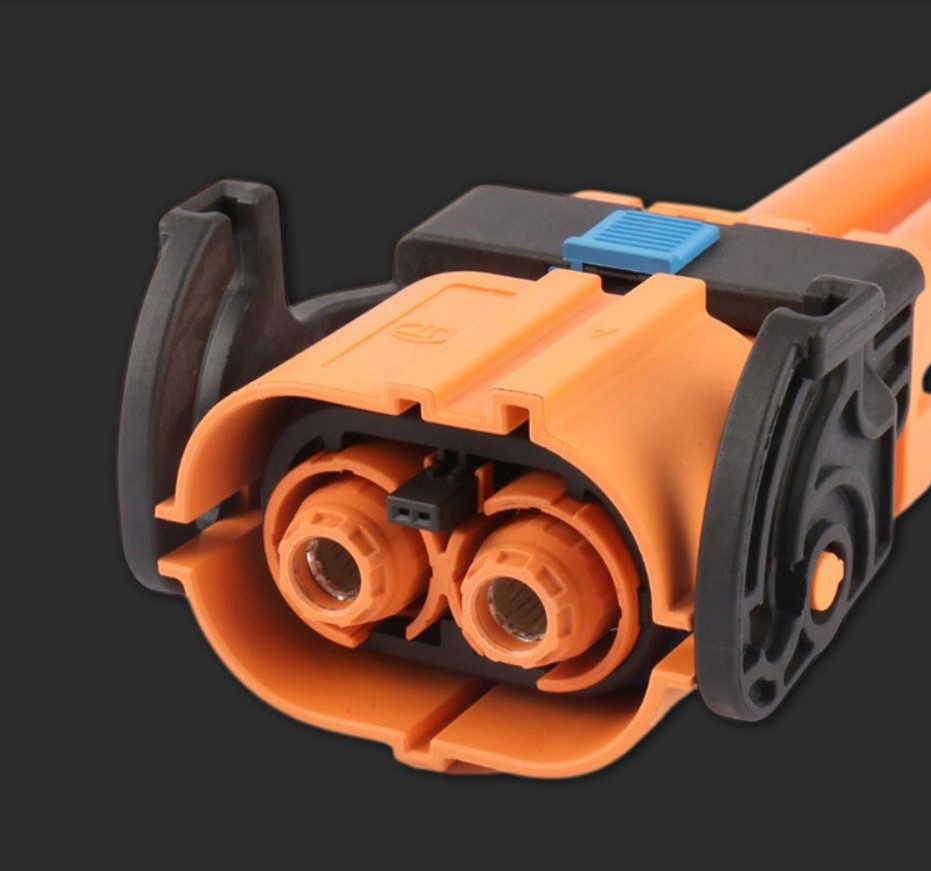

- Safety clips with retaining handle
- Insulated connections with cable gland

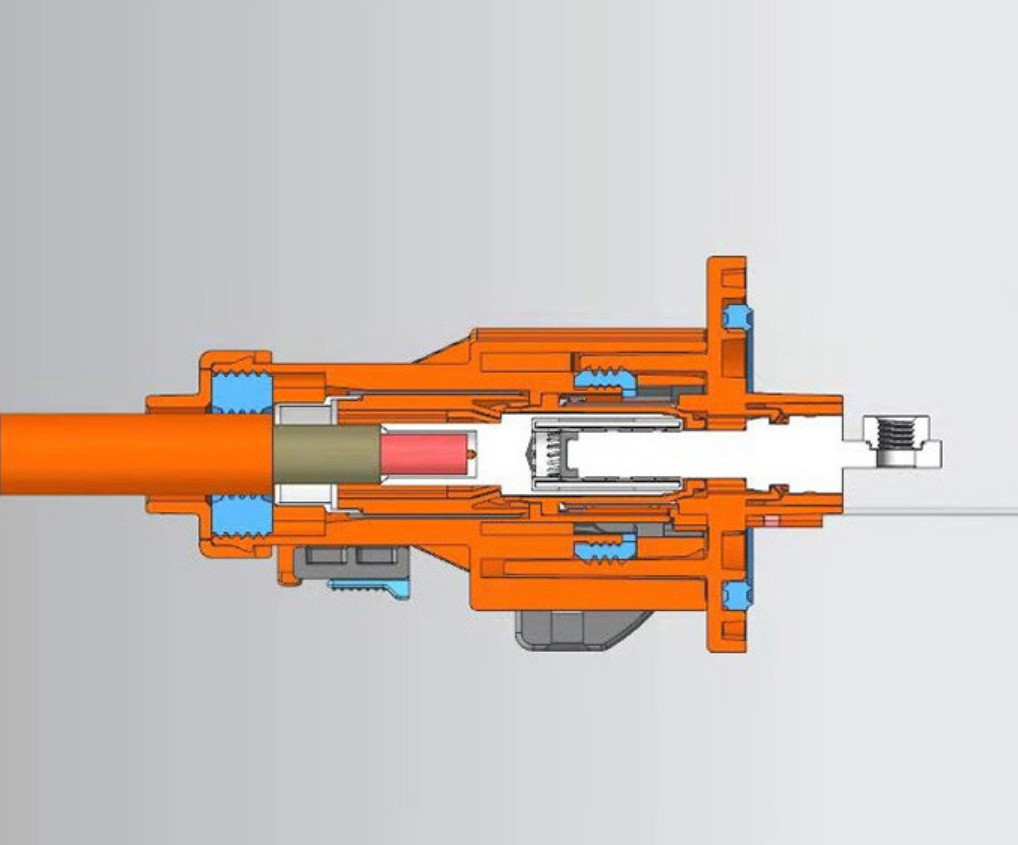

- 2-stage cable gland with stainless steel rings

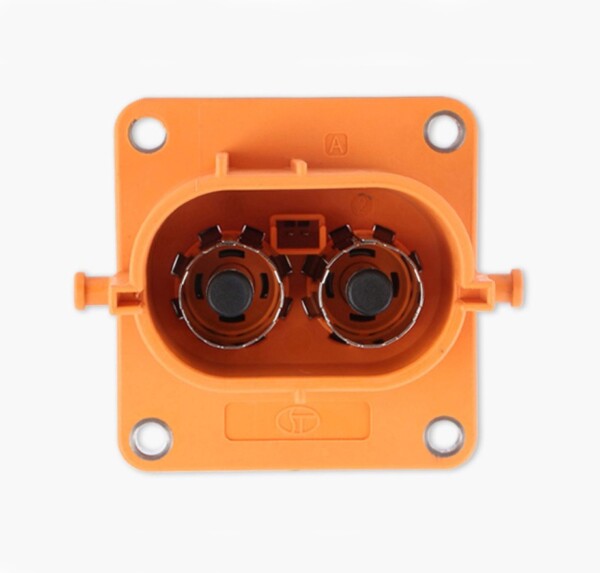

- Sealing and insulation of the bulkhead screw plate
- Robust end cap with M6 thread
But also in their manufacture:
- PA66 plastic body
- CNC machined stainless steel bushes and gland rings
- Silver-plated copper alloy used for connections
- Bulkhead support plate with lip seal.
- Position switch (connected or not) integrated inside the connector, with 2 x 0.5mm2 wires for connection to the control panel.
Sensitive points have been given an innovative technical solution to prevent possible damage (overheating, connection breakage, locking of the quick-fit connector) .
Inner terminal to be crimped with 25mm2 wire
Fully waterproof, IP66 insulation class

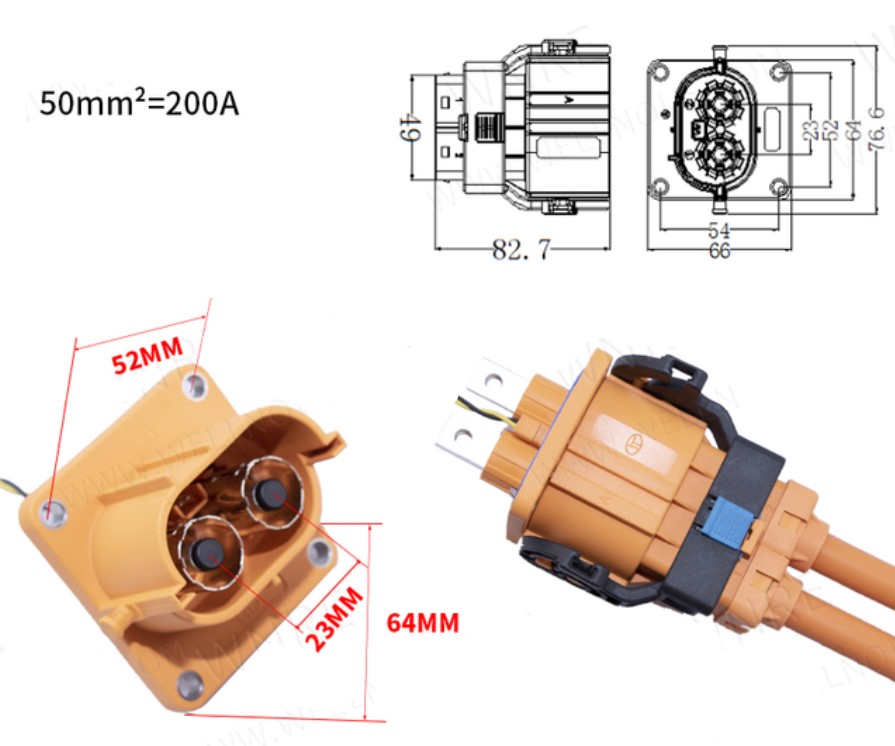

Technical specifications:
- Withstands high-pressure cleaning with Karcher
- Maximum current: 175 amps
- Maximum voltage: 600V
- Insulation: IP66
- Bulkhead mounting
- Total assembled length: 125mm
- Length / width of bulkhead plate: 65mm
- Drilling for 4 plate supports: M6

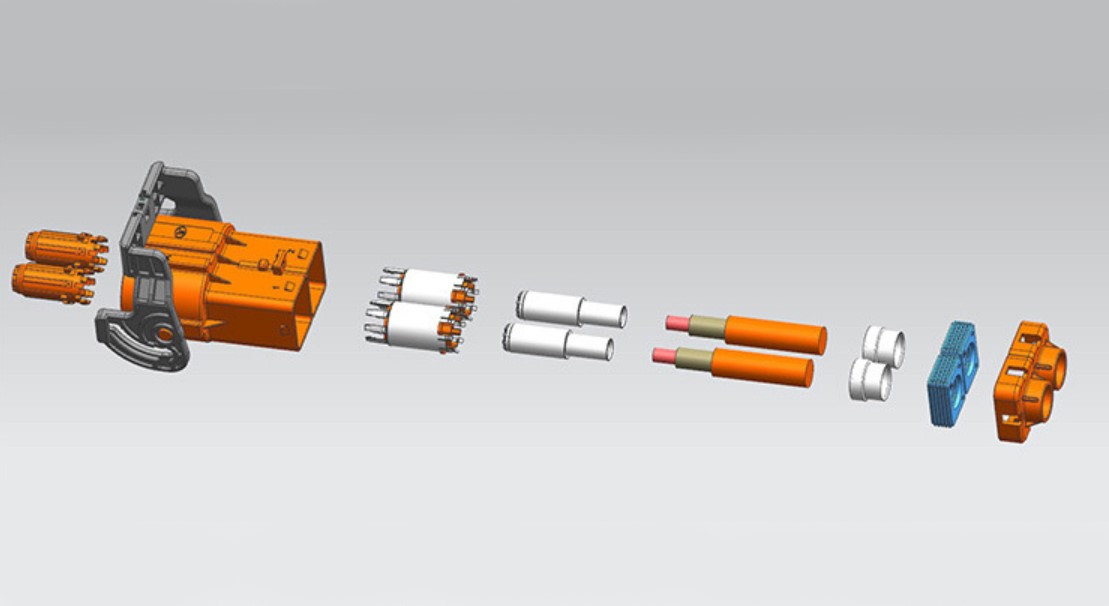

Assembly process:
- Crimp your wire into the female terminal
- Push the terminal into the connector until the clips hold it in place (note that it cannot be removed once it has been clipped in).
- Add the flared ring to the screw socket
- Add the cable gland
- Add the ring with the seal
- Add the compression ring and tighten firmly
