Simplify and centralise your power cables

Supply the terminal block with a main cable running directly from your battery or circuit breaker and separate the power supplies for your electrical appliances.

There are many advantages to this type of terminal block:

• Easy to locate when making up the wiring and wiring harness
• Increased safety in the event of a short circuit or power surge (only the line concerned is damaged)
• Easy line replacement
• Easy to add an extra device thanks to the large number of terminals available
• Can be used to power a complete car

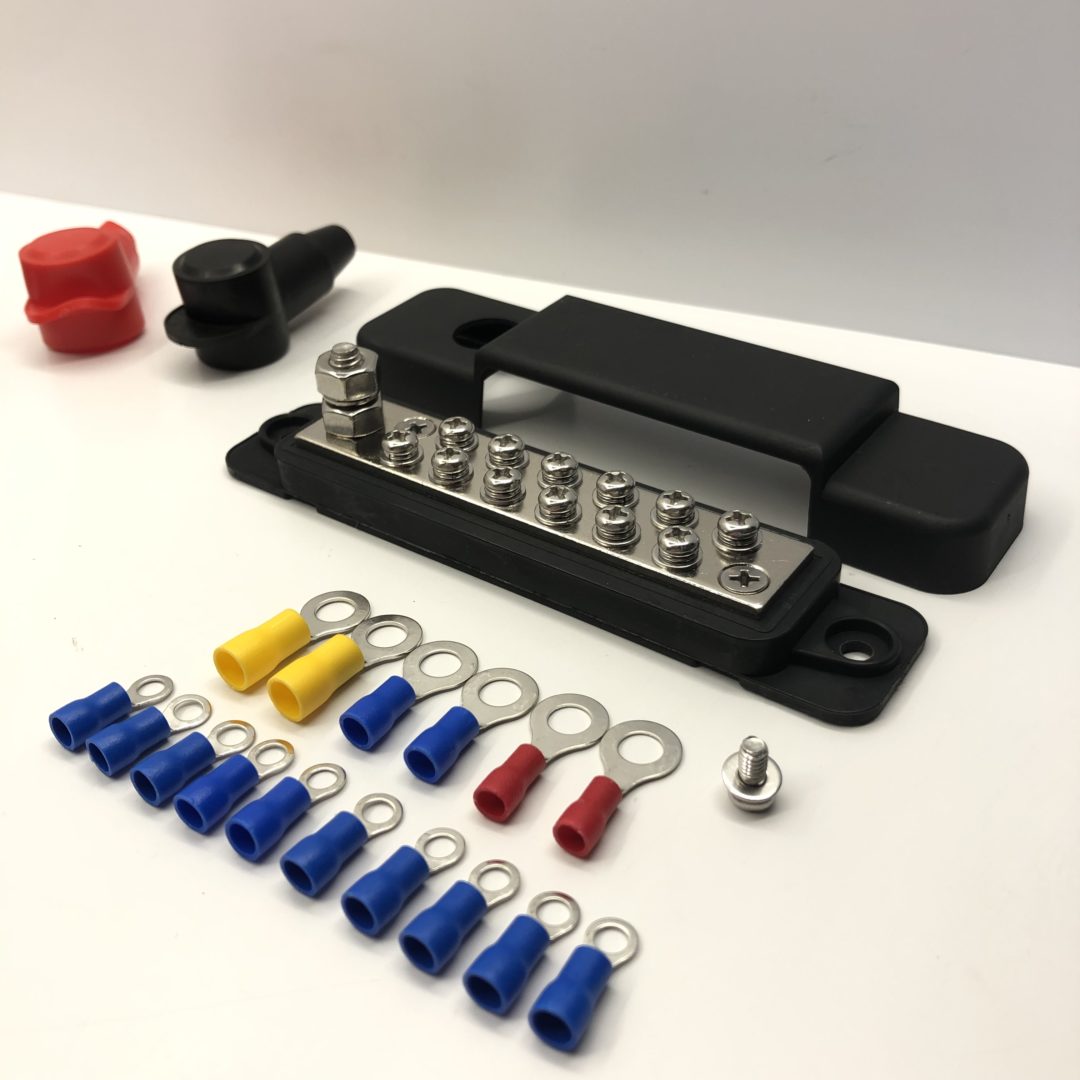

Sold with:

• A terminal protection cover
• A battery terminal cover for the general power supply
• An assortment of 32 round crimp terminals

Technical specifications:

• 30 amps / terminal
• Maximum voltage: 48V
• Maximum current: 240 amps
• Length: 135mm
• Width: 28mm
• Temperature range: -55°C to + 150°C
• ABS body
• Bronze terminal block
• M6 diameter main supply screw

To ensure a flawless connection when crimping the terminals, we recommend soldering them with additional tin.

Widely used in the automotive, agricultural and industrial sectors.

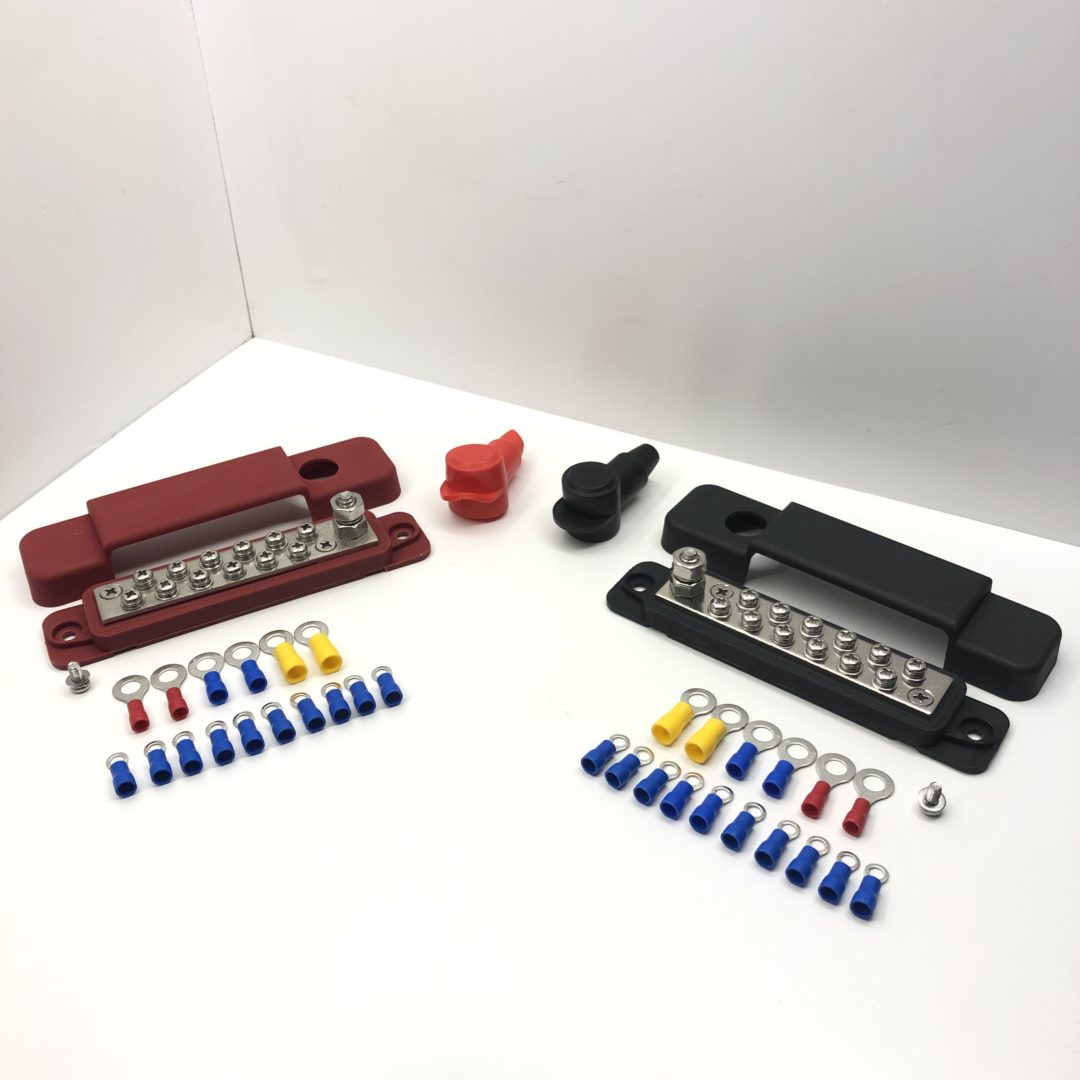

Sold in positive and negative sets.
