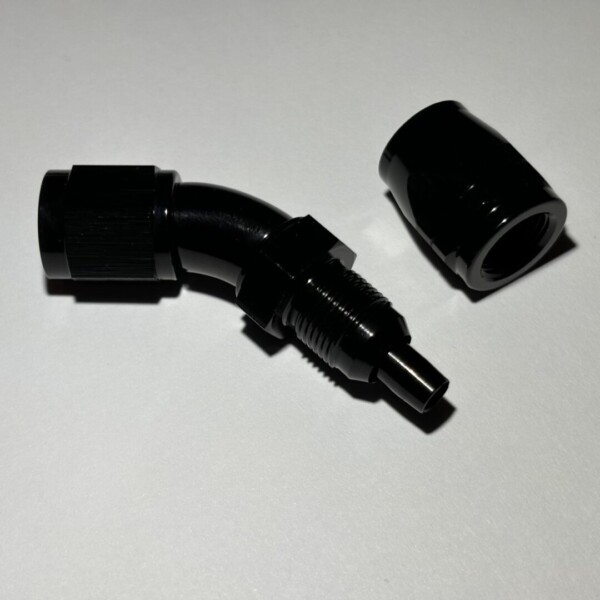

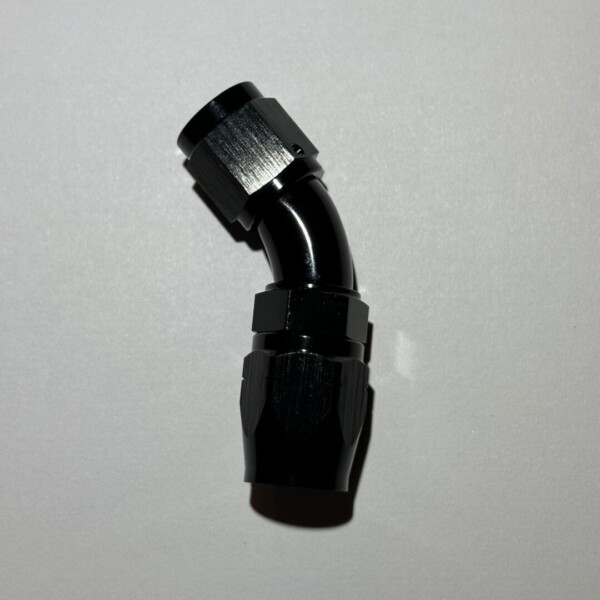

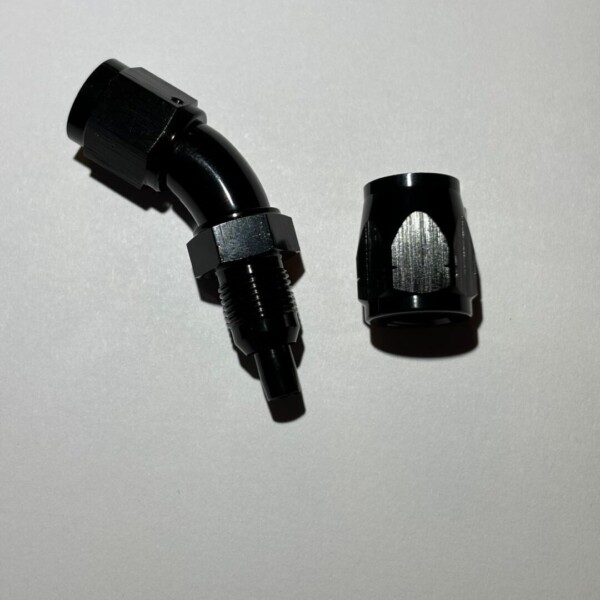

AN 4 45° fitting, black, for AN4 dash hose

Code: an4-45
AN 4 45° fitting, black, for AN4 dash hose
AN 4 45° fitting, black, for AN4 dash hose - Image 2
AN 4 45° fitting, black, for AN4 dash hose - Image 3

Dash 4 45° fitting:

  • Thread: AN4 = JiC7/16″ – 20 UNF
  • Inside diameter: 5mm
  • Material: CNC machined aluminium
  • Black anodised
  • Reusable
  • Outstanding finish
  • Temperature range: -80°C to + 550°C
  • Maximum pressure: 60 bars

  • Double sealing lips

15,90€

30 in stock

30 in stock

Share (0)
Total: 0 Total: 0 Total: 0

Dash 4 45° female fittings

CNC-machined dash 4 fitting in black anodised aluminium.

AN4 = JIC thread 7/16″ – 20 UNF

Internal diameter: 5 mm

Dash-type fittings are among the safest and most effective solutions when it comes to coupling hoses.

The removable ring is designed with 3 internal retaining lips: when assembled on a hose, these lips push the hose away from the ring itself. This locks the hose into the fitting, creating a three-stage seal. Unlike serflex collars and crimping rings, which are not always watertight, Dash fittings are perfectly watertight and reusable.Swivel ring. Once crimped, the end of the fitting can be swivelled as required to adapt to your installation.Maximum operating pressure of 60 bar.

Technical specifications:

  • Thread: AN4 = JiC7/16″ – 20 UNF
  • Inside diameter: 5mm
  • Material: CNC machined aluminium
  • Black anodised
  • Reusable
  • Outstanding finish
  • Temperature range: -80°C to + 550°C
  • Double lip seals
  • Maximum pressure: 60 bar

Our hoses and fittings are compatible with all types of fluids and hydrocarbons:

  1. Engine oil
  2. Petrol
  3. Diesel
  4. Ethanol E85
  5. Cooling fluids
  6. Power steering fluid
  7. Water / Air

Examples of applications :

  • Fuel hoses
  • Cooling hoses
  • Pressure hoses for waste-gate and dump valve.
  • Turbocharger oil supply.
  • Brake master cylinder supply.
  • Power steering hoses (low pressure).
Weight 0,1 kg
