Box with 6 relays + 6 fuses for complete 12-volt electrical installation
Electrical box for complete installation 12 to 48 volts
Box with 6 relays 40 amps + 6 normal fuses
Create customised electrical circuits for new build or restoration projects, includingindustrial machinery, farm machinery and racing cars .
With this relay and fuse box, put an end to confusing and messy electrical circuits.Centralise all your relay fuses in a single box.Wires pass through the bottom, clip-on lid on top .
Sold with all the necessary terminals + relays + fuses for a complete installation.
Robust PA66 plastic, interchangeable relay and fuse holders.
Technical specifications:
- Material: PA66 plastic
- Maximum voltage: 48 volts
- Maximum current per relay: 40 amps
- Fuse type: automotive standard (ATO)
- Relay type: 5-pin 40 amp 12 volt automotive and industrial standard
- Number of relays: 6
- Number of fuses: 6
- Length: 15 cm
- Width: 8 cm
- Height with cover: 10cm
Industrial quality.
| Weight | 0,3 kg |
|---|
You may also like…
-
Electric sleeveBlack fibreglass fireproof sheath 600°C length 5m diameter 6 to 25mm for electrical harness
Fibreglass fireproof sheath:
- Resistant to over 600°C
- Black colour
- High flexibility
- Easy to install
- Non-friable, can be used like braided sleeving
- Diameter from 6 to 25mm
-
Sold in 5M lengths
(0 reviews)10,29€ – 31,89€ Select options This product has multiple variants. The options may be chosen on the product page -
Relay box and fusesBox with 8 relays + 15 fuses for complete 12-volt electrical installation
8-relay electrical box for complete installation:
- Centralise all your relays and fuses
- 12 slots for standard fuses 5 to 40 amps
- 2 slots for high-power fuses 50 to 500 amps
- Supplied with all the terminals required for installation
- Sold with fuses and relays
-
Industrial quality!
(0 reviews) -
Relay box and fusesBox with 10 relays + 18 fuses for complete 12-volt electrical installation
10-relay electrical box for complete installation:
- Centralise all your relays and fuses
- 15 slots for standard fuses 5 to 40 amps
- 3 slots for high-power fuses 50 to 500 amps
- Sold with all the necessary terminals for installation
- Fuses and relays included
-
Industrial quality!
(0 reviews) -
Adhesive tapes3M Super 88 electrician’s tape for wiring harnesses and circuits 19mm x 20 metres
Scotch 3M super 88:
- The ultimate electrician’s tape
- Manufacturer reference: 3M super 88
- Roll length: 20 metres
- Width: 19mm
- Thickness: 0.215mm
- Colour: Black
- Great flexibility of use
- Material: Vinyl
- Maximum insulation voltage: 600V
- Temperature range: -18°C to +105°C
- Acceptable stretch factor: +150%.
-
Widely used in the automotive, industrial and construction sectors.
(0 reviews)
Related products
-

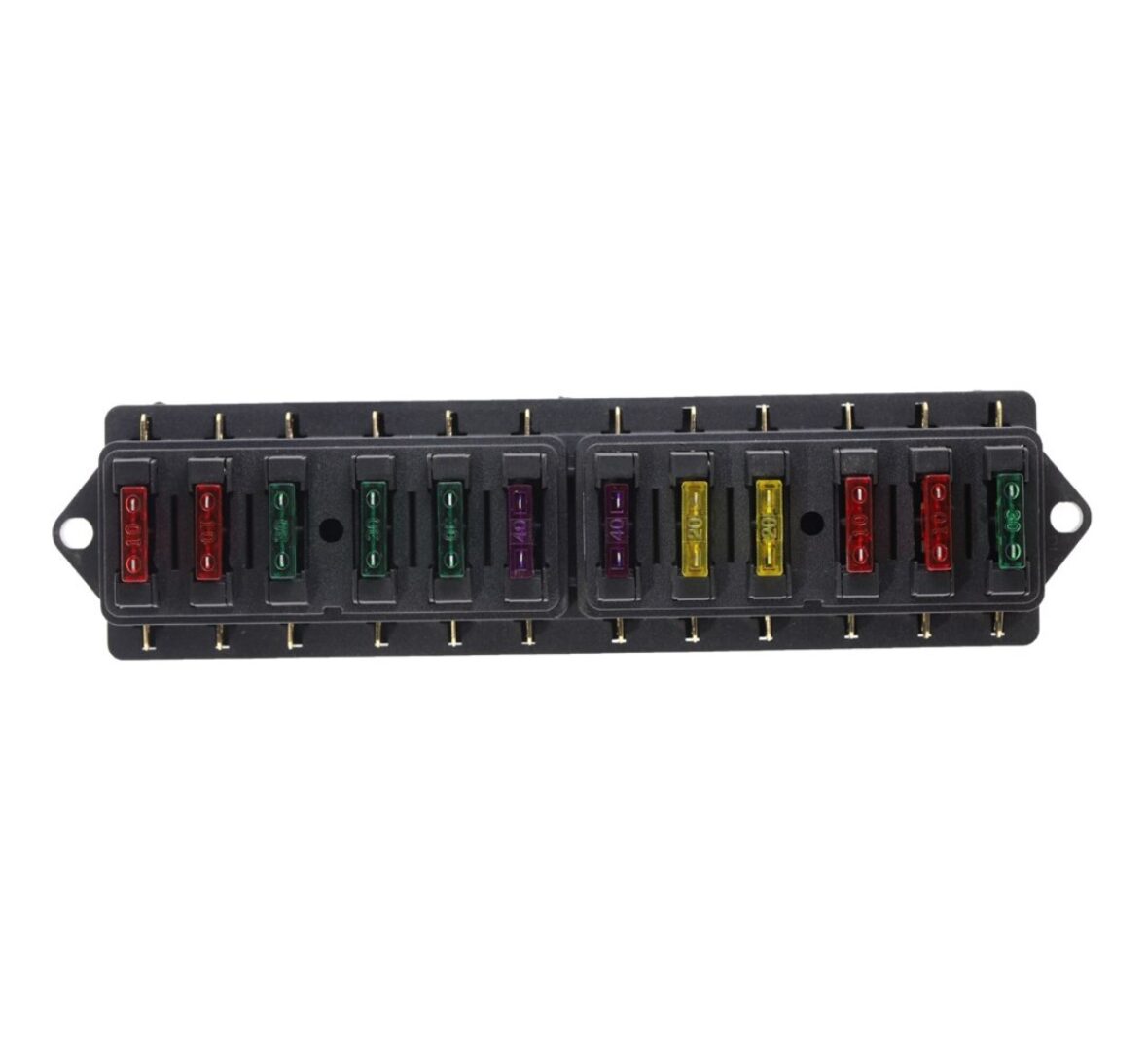

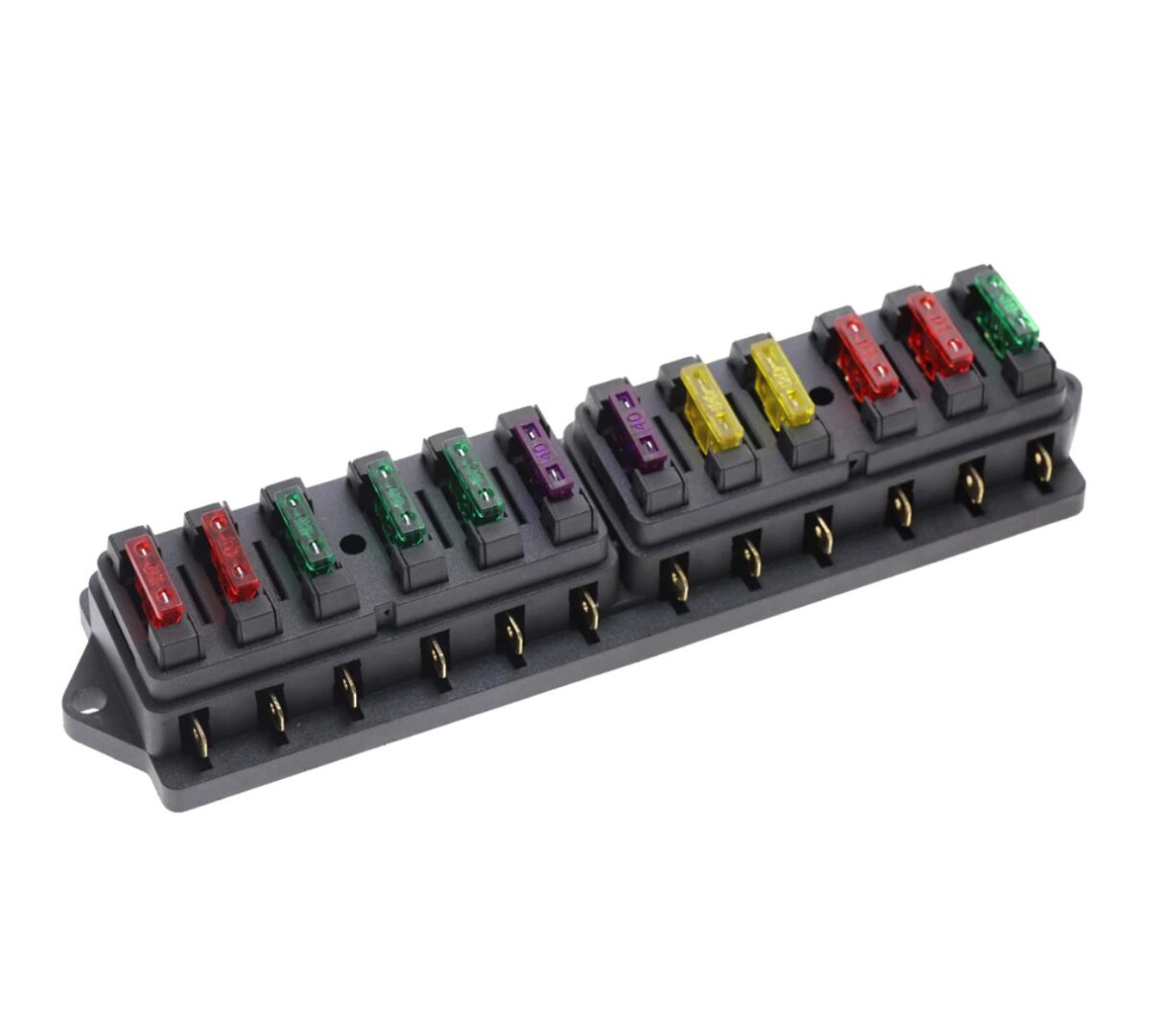

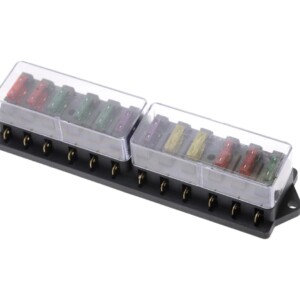

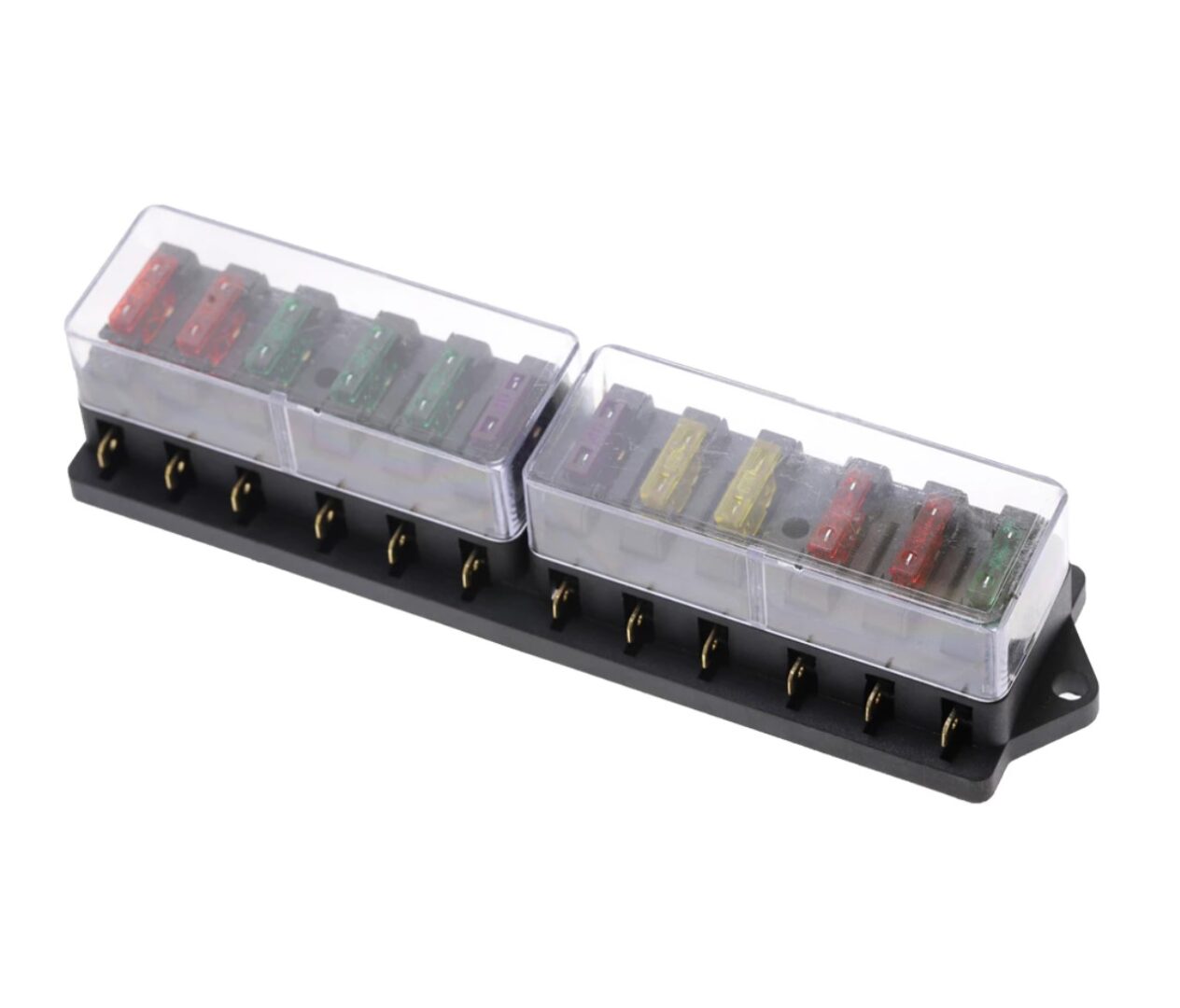

Relay box and fuses12-channel 12-volt fuse holder with cover
