The best gun at the best price

---

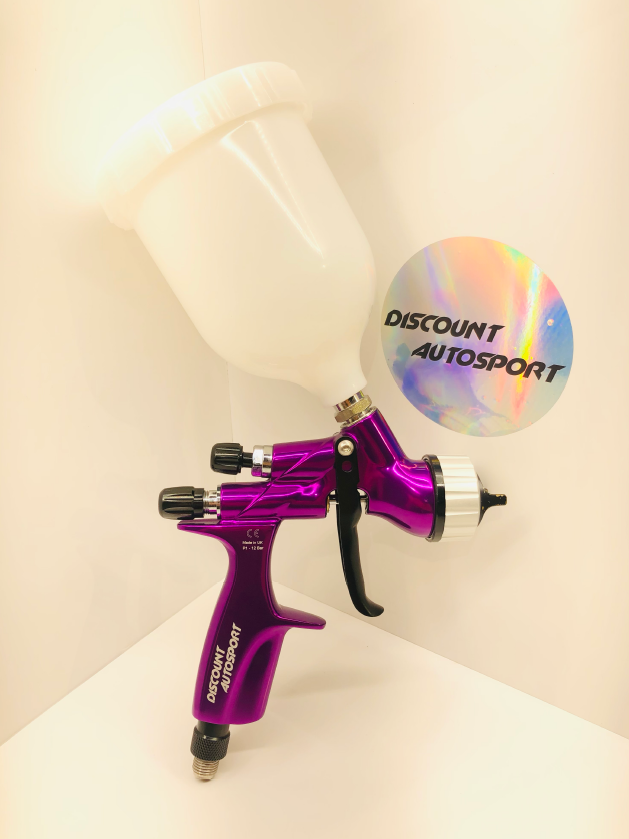

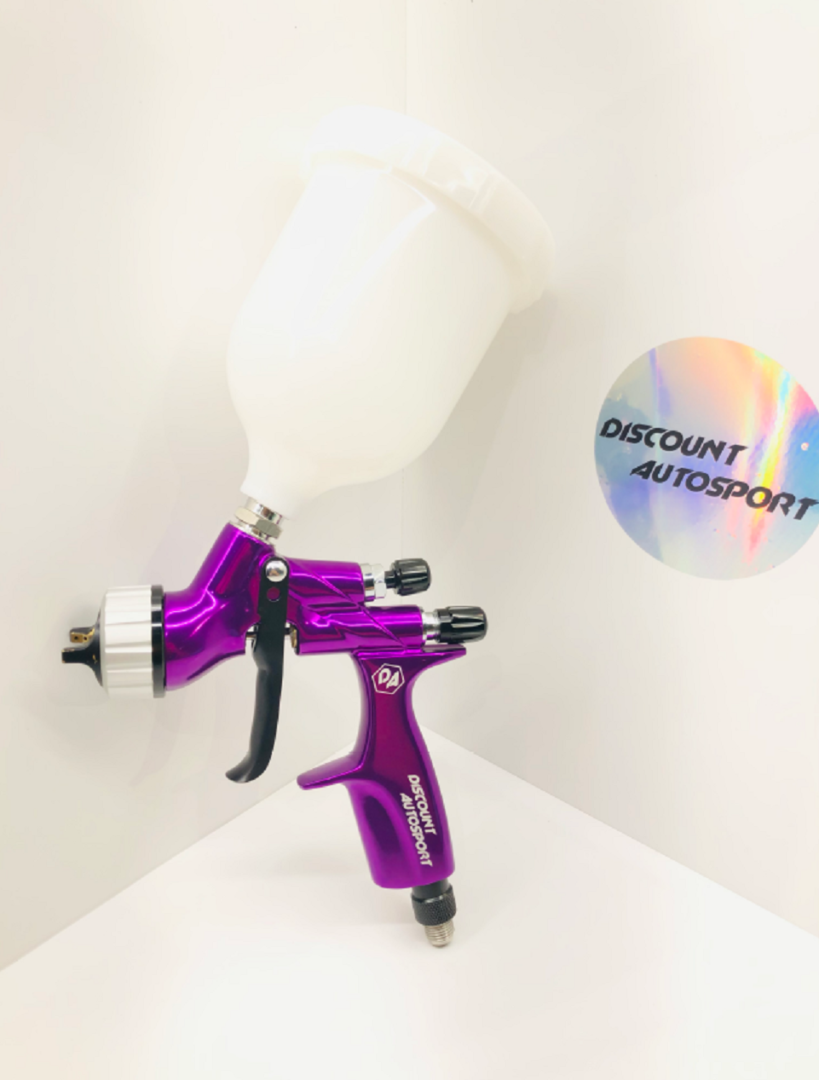

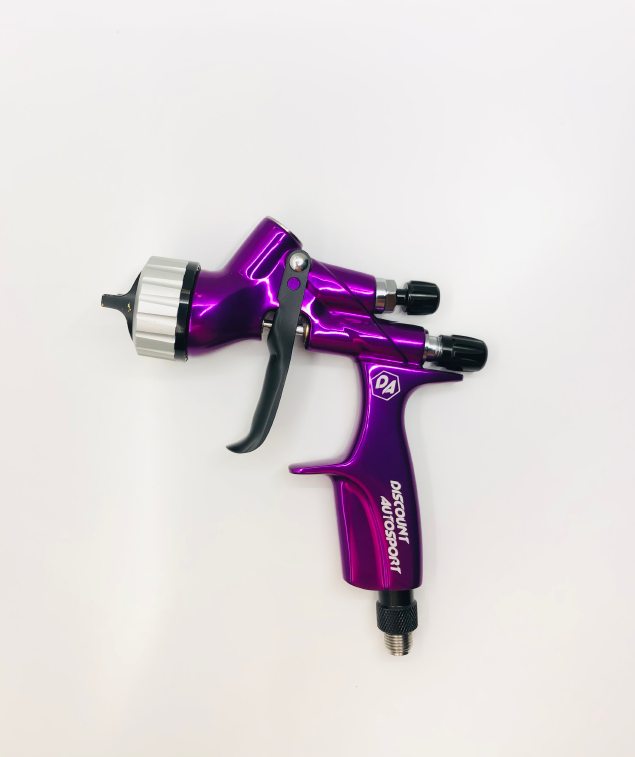

This DA PRO paint spray gun has been developed for professional painters who want a high-quality finish.

Lightweight, streamlined design.

1.3mm nozzle size suitable for water-based and solvent-based paints.

Easy to clean.

Operating pressure from 1 to 10 bar.

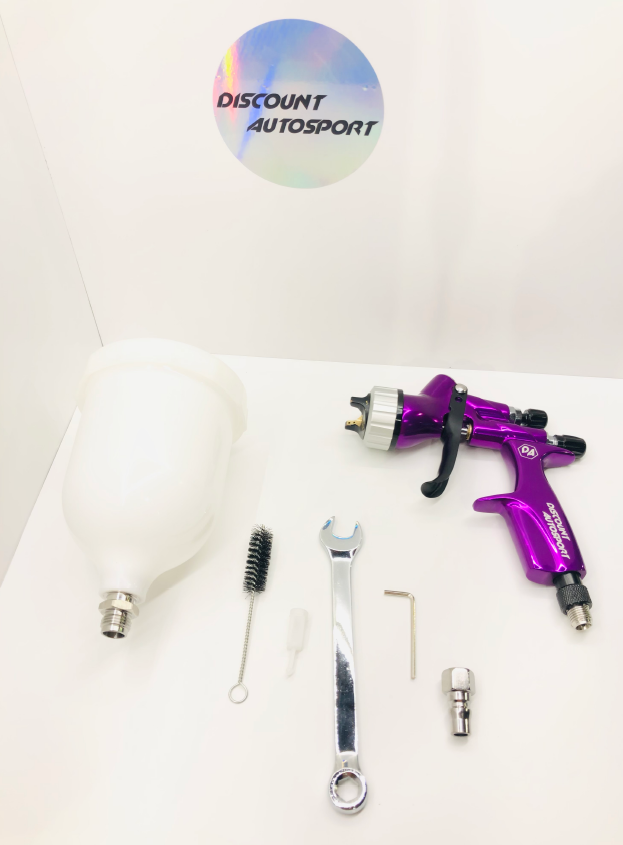

Supplied with accessories, an American fitting and a European fitting.

All our spray guns are designed with HVLP (High Volume Low Pressure) technology. This ensures a high paint displacement with a reduced air volume, guaranteeing excellent paint atomisation.

---

Our advice on adjusting your gun

Basic settings for a spray gun:

• Firstly, set the inlet pressure of your spray gun with a pressure regulator.
• Set to 1.2 bars (pressure specifically adapted to our DA pro spray guns).
• Air flow valve wide open.
• Fan valve fully open, tighten a quarter turn, to adjust and clean spray edges.
• Fluid valve fully open, squeeze the trigger fully, tighten the fluid valve until you feel resistance against the trigger.
• From this position, tighten one turn.
• Your gun is now set to the “Wide open” position.

This is the basic setting for all products, after-treatment, paint and varnish.

Of course, it is essential to adjust your setting with the product.

Technical specifications:

• Operating pressure: 1 to 10 bar
• Adjustable paint flow
• Adjustable air flow from 190 to 250ml /minute
• Adjustable output beam opening from 210 to 400mm
• Fully solvent cleanable
• 1.7mm nozzle
• Jar capacity: 600ml
• 1/4″ air hose connection

Our advice on setting up and applying paint:

After wet / wet:

• Pressure 1.5 bars, always in “wide open” position.
• Paint, keeping your spray gun 10-15cm away from the surface.
• Wait 30 minutes before applying the first coat of paint.

1st coat of paint:

• Pressure 1.2 bars always in “wide open” position.
• Always keep your spray gun 10-15 cm away.
• Always maintain 75-90% overlap between coats.
• Wait 20 minutes before applying the second coat.
• You can use P800 sandpaper to smooth this first coat.

2nd coat of paint:

• Same gun settings, same procedure as the first coat.
• DO NOT STICK!! the second coat.

3rd coat of paint:

• Apply the 3rd coat directly after the second, do not wait for the second coat to dry.
• Pressure 1 bar, in “wide open” position.
• Keep the gun at a distance of 30cm from the surface instead of 10/15cm.
• The purpose of this coat is to smooth the paint.
• Allow to dry for 30 minutes before varnishing.

1st coat of varnish:

• Pressure 1.1 bar.
• Keep the spray gun at a distance of 10-15cm.
• Allow to dry for 15 minutes.

2nd coat of varnish:

• Pressure 1.2 bar.
• Same distance as the first coat of varnish.
• The purpose of this coat is to smooth the varnish.

Your re-varnished paintwork is now complete.

---

Direct gloss paints:

• Pressure 1.2 bars always in “wide open” position.
• Always keep your spray gun 10-15 cm away.
• Always maintain 75-90% overlap between coats.

These tips and settings are basic advice, of course.

But they will help you find your feet when you start painting.
