Needle-type exhaust temperature gauge

Measure your exhaust temperature

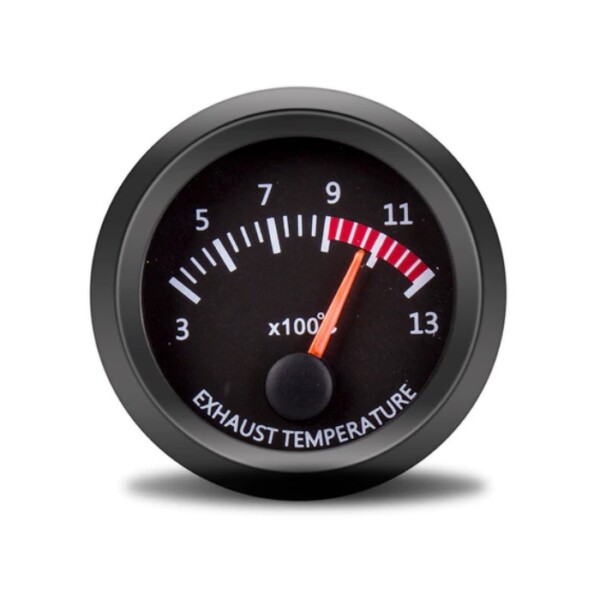

Quickly read the temperature thanks to the fluorescent orange needle.

Scales from 300°C to 1300°C covering the temperature range of most automotive engines.

Simplified electrical connection with the 4-way connector plugged directly into the back of the gauge.

Easy mounting of the manometer on the wall thanks to the ring that can be screwed around the manometer.

Needle movement controlled by a stepper motor, offering unrivalled responsiveness and precision.

Fitting the EGT sensor: (Exhaust Gas Temperature)

1. Drill a 10mm diameter hole in your exhaust system
2. Thread the hole with a 1/8NPT tap
3. Screw the end cap with olive into the hole
4. For a flawless fit, we recommend that you weld your end cap to your exhaust.
5. Be careful not to let the end of the probe touch the exhaust.

Technical specifications:

• Pressure gauge diameter 52mm
• Temperature range: 300° to 1300°C
• Probe thread: 1/8 NPT
• Operating voltage: 9 to 16 volts
• Pressure gauge mounting: Screw-in ring
• Simplified electrical connection: 4 wires
• Universal compatibility

Brand: DISCOUNT AUTOSPORT

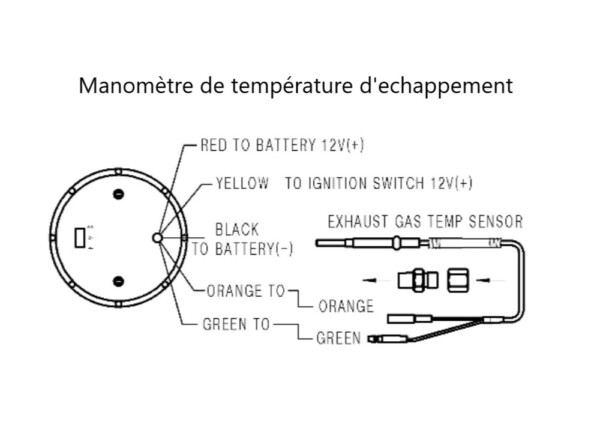

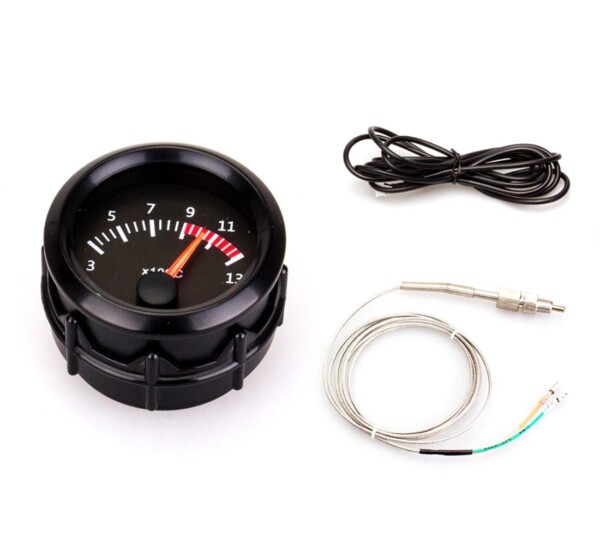

Sold with its EGT temperature sensor in 1/8 thread + wiring harness and wiring diagram.
