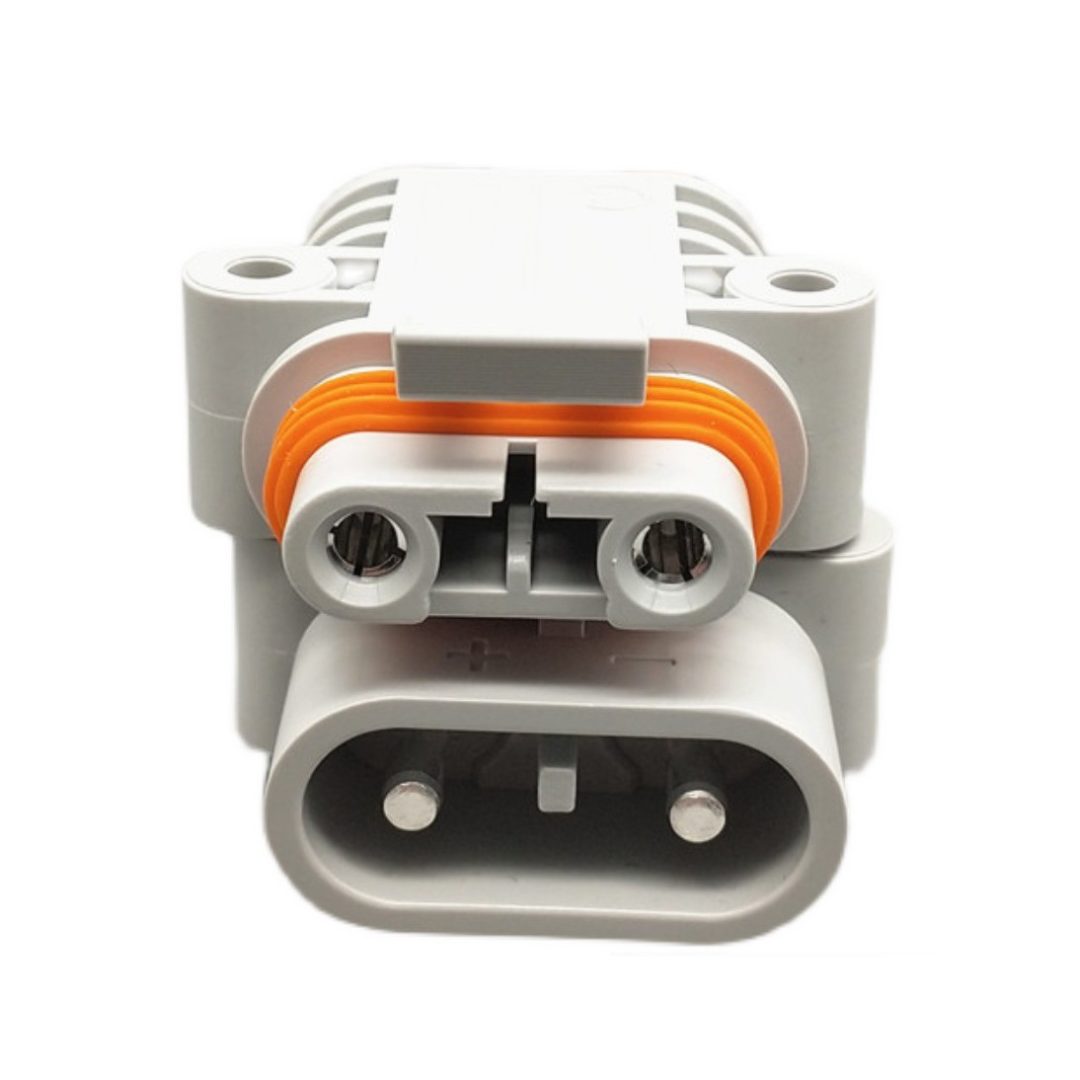

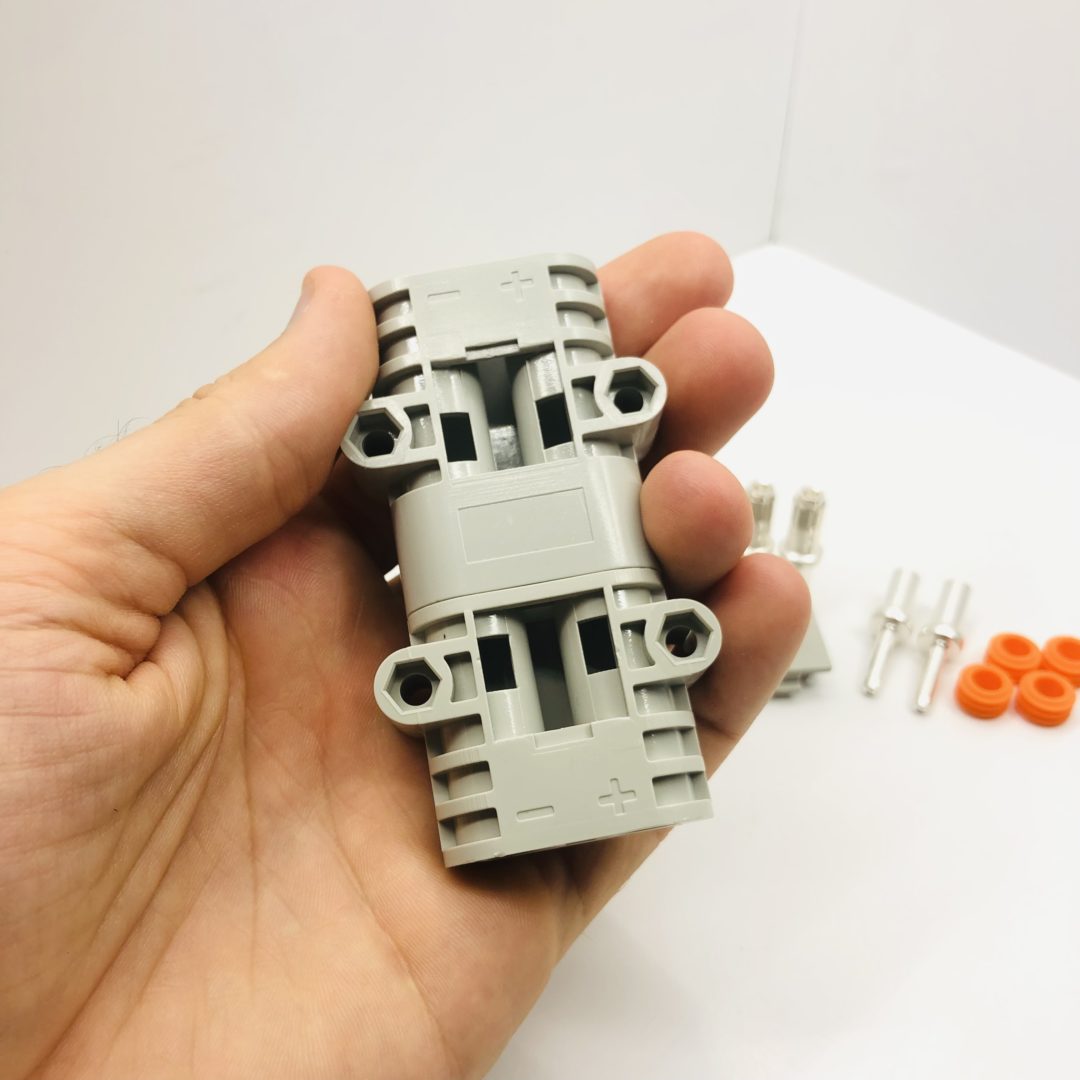

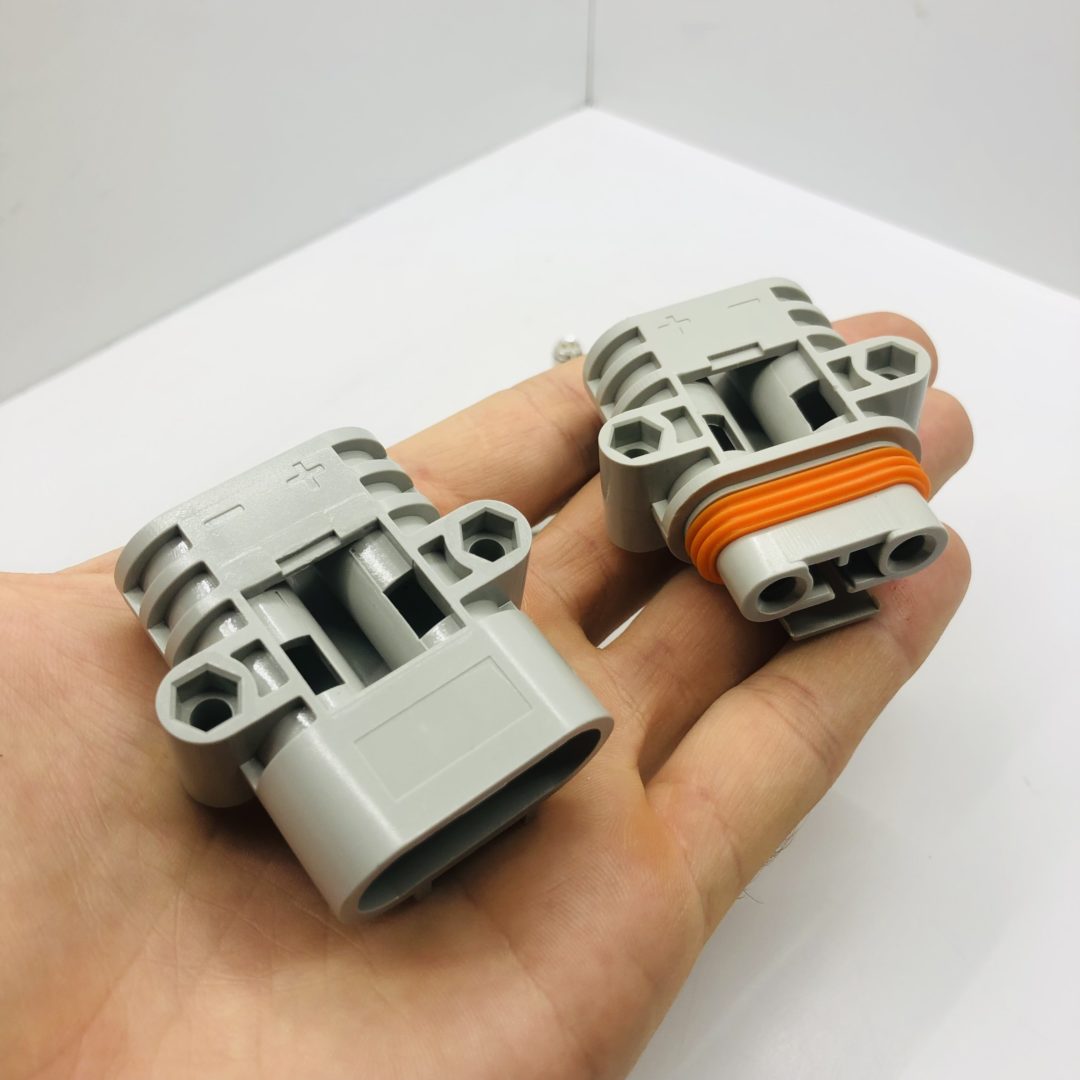

High-power 2-way 70 amp 170V waterproof IP68 marine boat connector
The connector for marine equipment consuming up to 70 amperes
The connectors most commonly used to power light electric vehicles (go-karts, motorbikes).
But also for 4×4 winches and electric power steering pumps, which generally consume close to 50 amps.
Because they are IP68 waterproof, these connectors can also be used in environments that come into contact with water (marine, cleaning with a karcher).
Widely used in the boating and marine industries to connect high-power devices.
These connectors feature a high quality design:

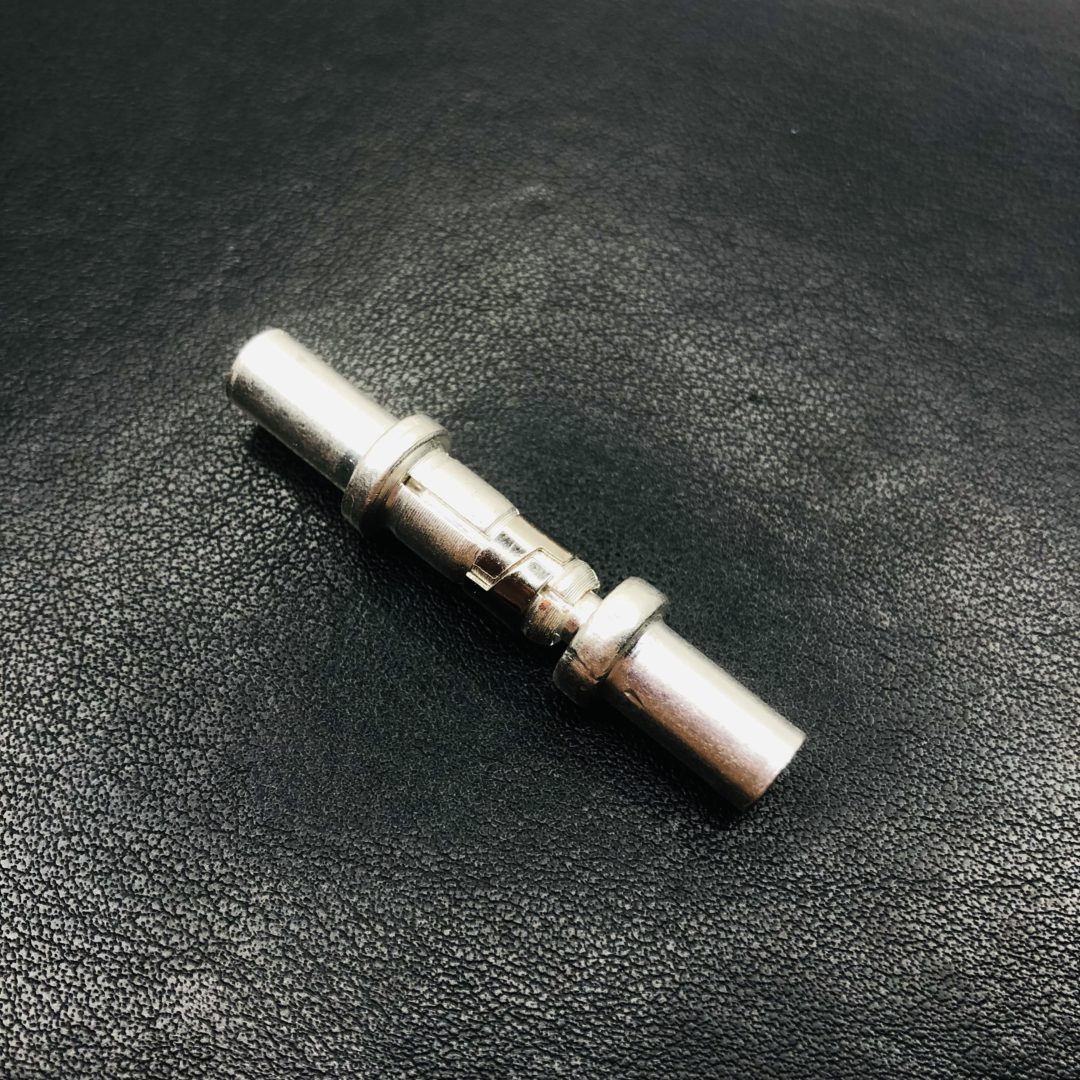

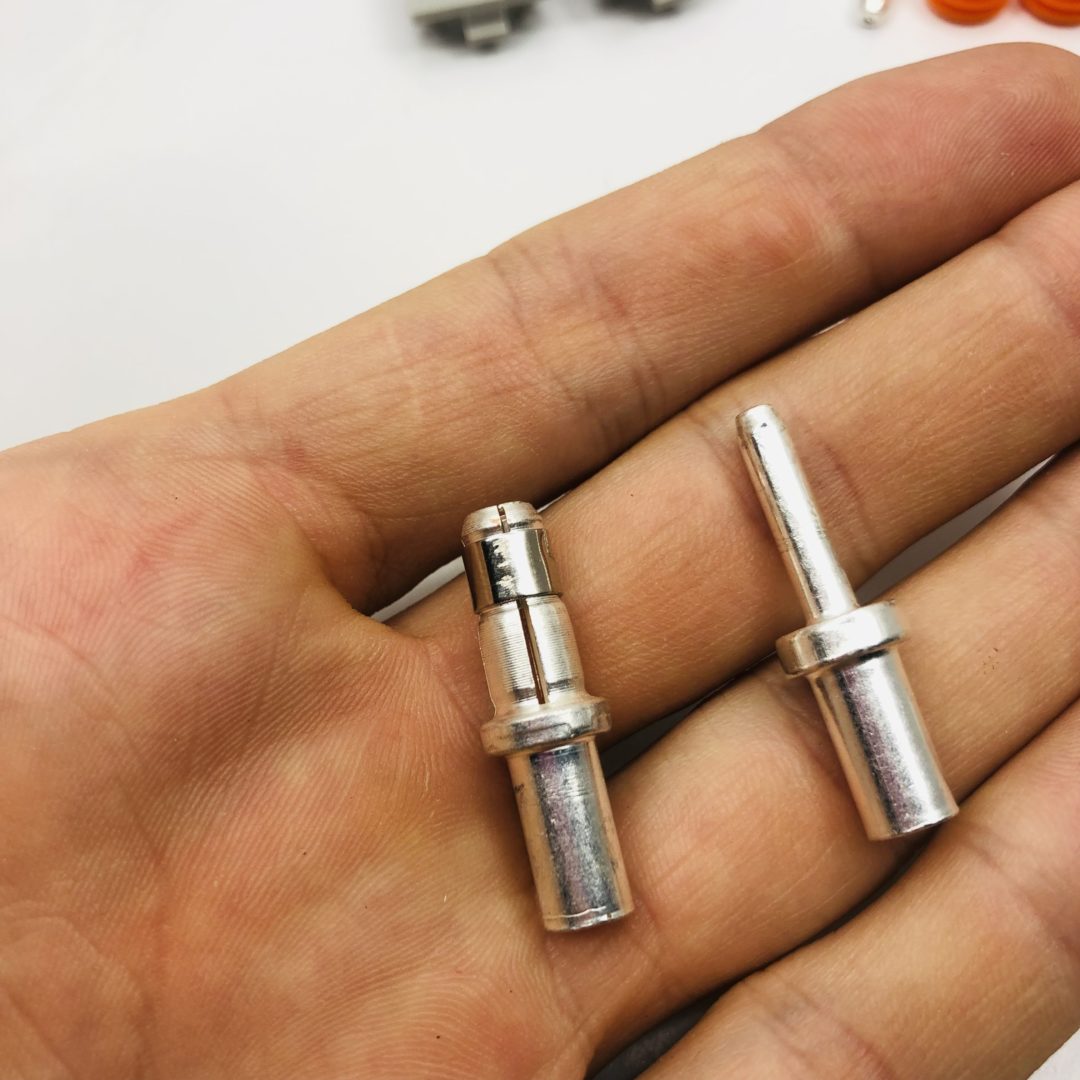

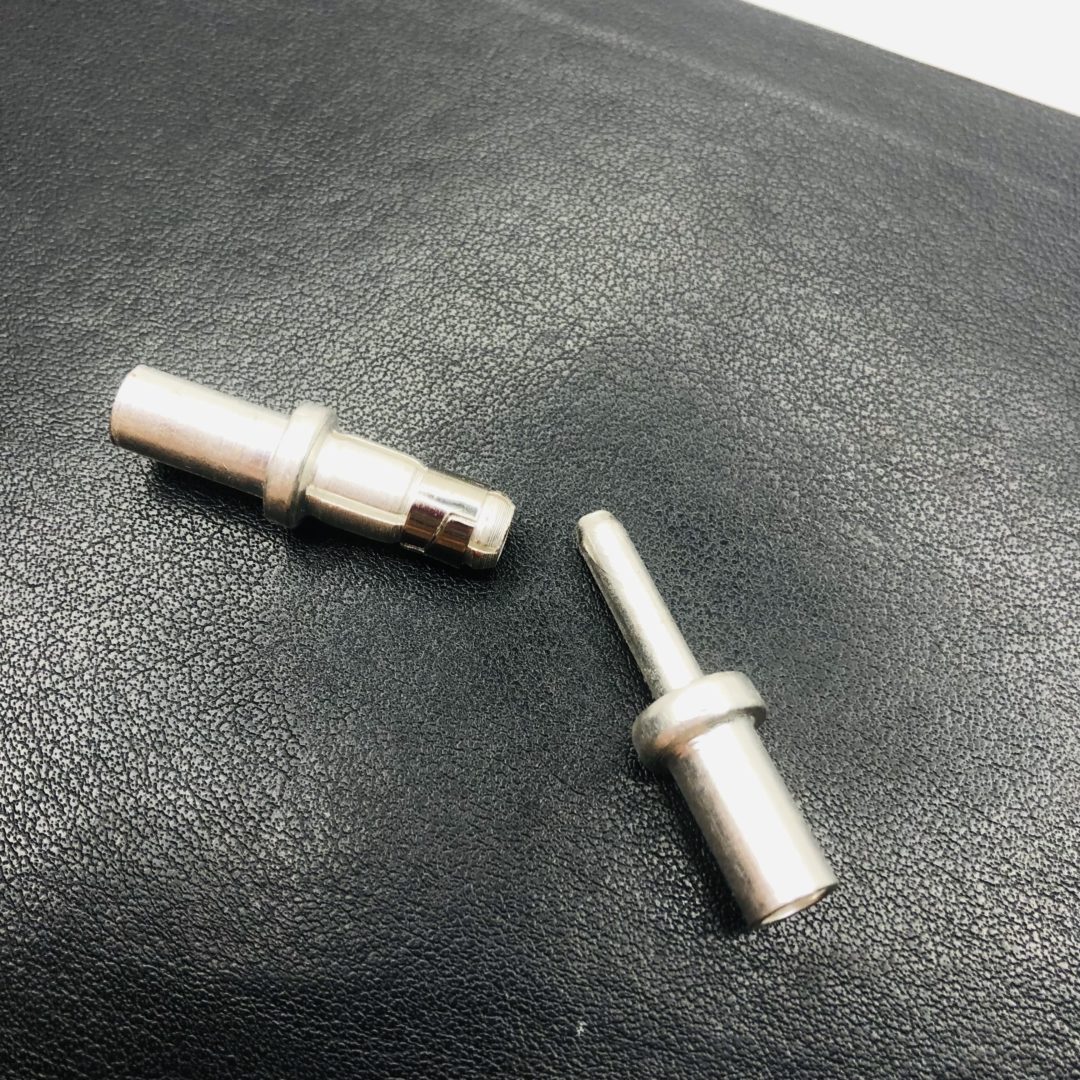

- Female terminal with clamping ring
- Male terminal with solid 4.5 mm diameter ferrule
- PA66 plastic body (resistant up to 260° + chemicals)
- Removable terminal block (if terminals need to be removed)
- Slots for fixing with 4 screws
- Safety catch

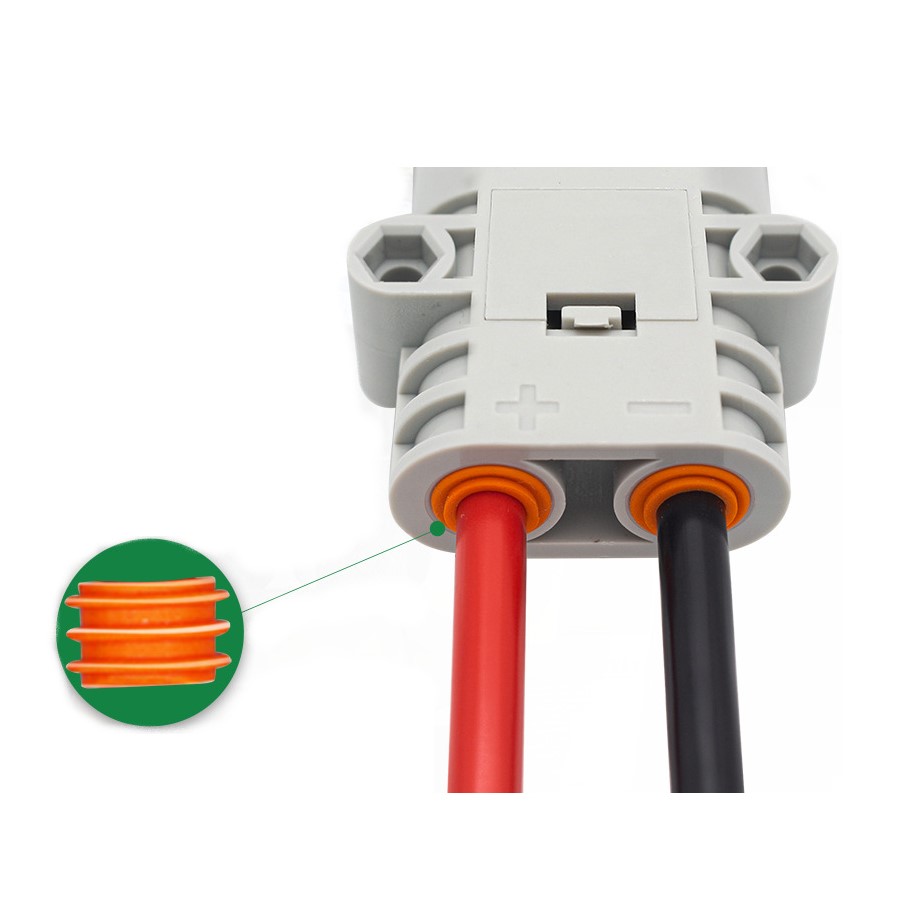

- IP68 sealing
Technical specifications:
- Maximum acceptable voltage: 170 Volts
- Maximum current: 70 Amps
- Lugs designed to accept 4 to 6 mm2 wire
- Copper + silver plated terminals
- Operating range: -50°C to +140°C
- Insulated against water and external aggression IP68

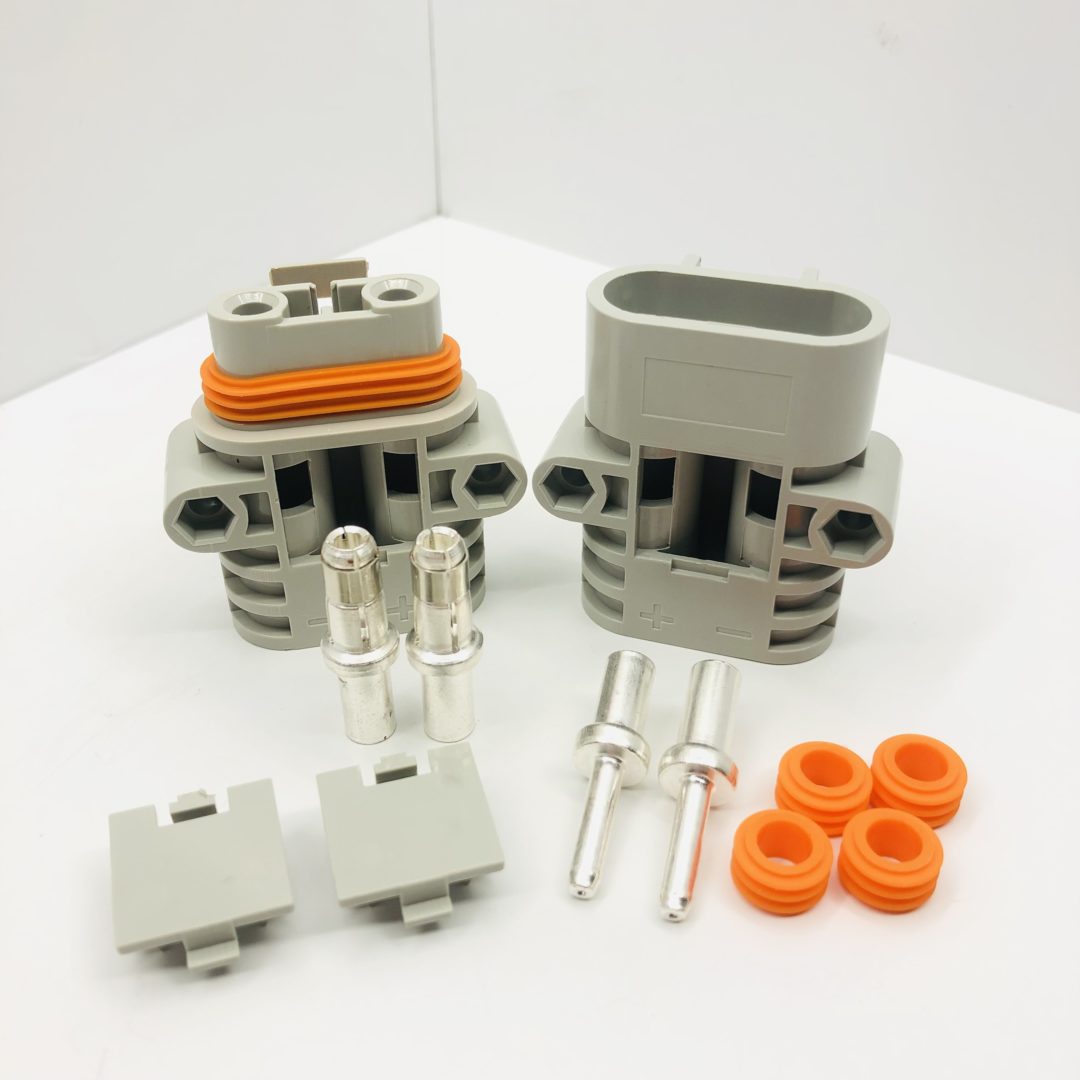

Sold as a complete set: male + female connector, male + female cable lugs, 4 wire seals.
| Weight | 0,2 kg |
|---|
