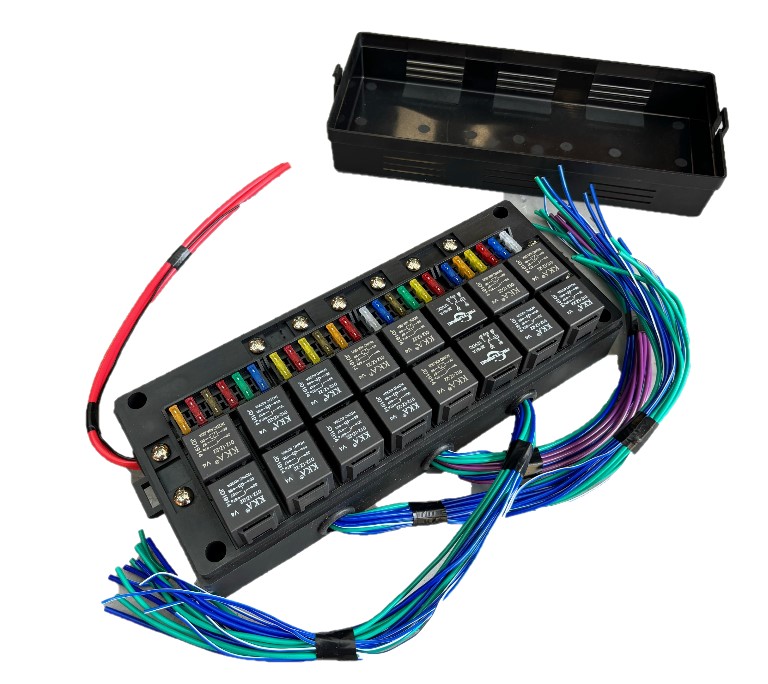

Pre-wired box with 16 relays + 29 fuses for complete 12-volt electrical installation

Code: boite-16relais+24fuse/précablée

Pre-wired 16-relay electrical box:

  • Centralise all your relays and fuses
  • 16 relays of 40 amps
  • 24 slots for standard fuses 5 to 40 amps
  • 5 slots for high-power fuses 50 to 500 amps
  • Sold with fuses and relays
  • Industrial quality
  • Pre-wired and ready to install

299,90

3 in stock

3 in stock

Pre-wired electrical box for complete 12-volt installation


Box with 16 40-amp relays + 24 normal fuses + 5 high-power fuses.

Customise your electrical circuits for new build or restoration projects, anduse them for industrial machinery, farm machinery and racing cars .

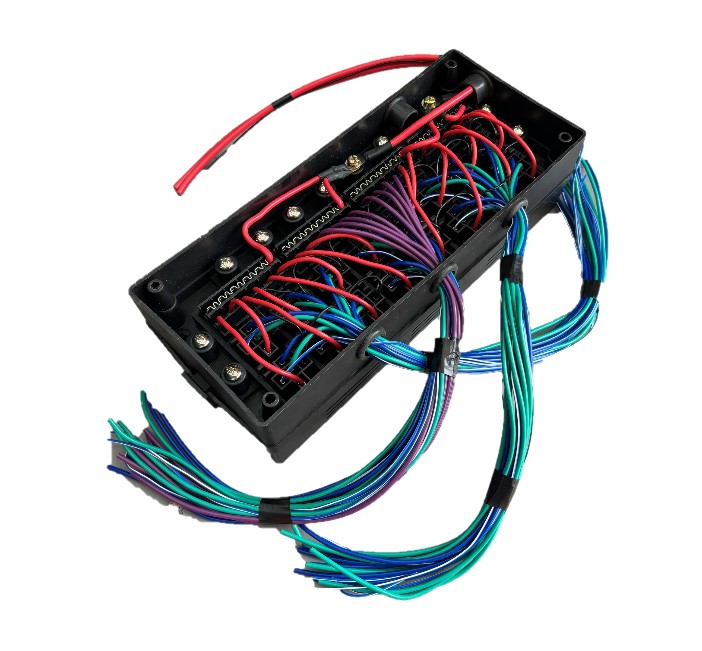

With this relay and fuse box, put an end to confusing and messy electrical circuits.Centralise all your relay fuses in a single box.Wires pass through the bottom, clip-on lid on top .

Use ANL type high-power fuses for your current-hungry appliances such as agricultural starters, electric fans and high-power petrol pumps.

Sold with all the necessary terminals + relay + fuses to complete the installation.

Robust PA66 plastic, interchangeable relay and fuse holders.

Technical specifications:

  • Material: PA66 plastic
  • Maximum voltage: 48 volts
  • Maximum current per relay: 40 amps
  • Fuse type: automotive standard (ATO) and high power (ANL)
  • Relay type: 4 or 5 pin 40 amp 12 volt automotive and industrial standard
  • Number of relays: 16
  • Number of conventional fuses (ATO): 24
  • Number of high-power fuses (ANL): 5
  • Length: 30cm
  • Width: 12.5 cm
  • Height with cover: 8cm

Industrial quality.

Weight 1 kg
