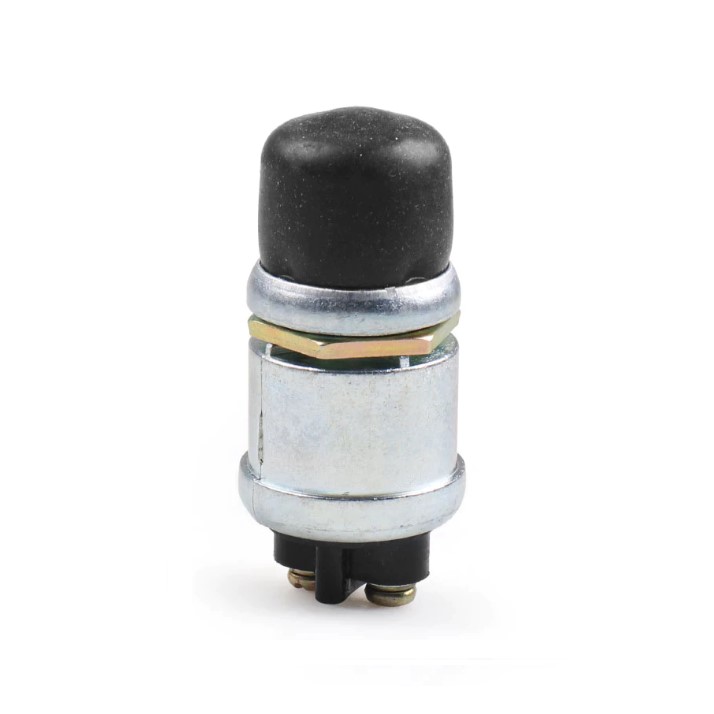

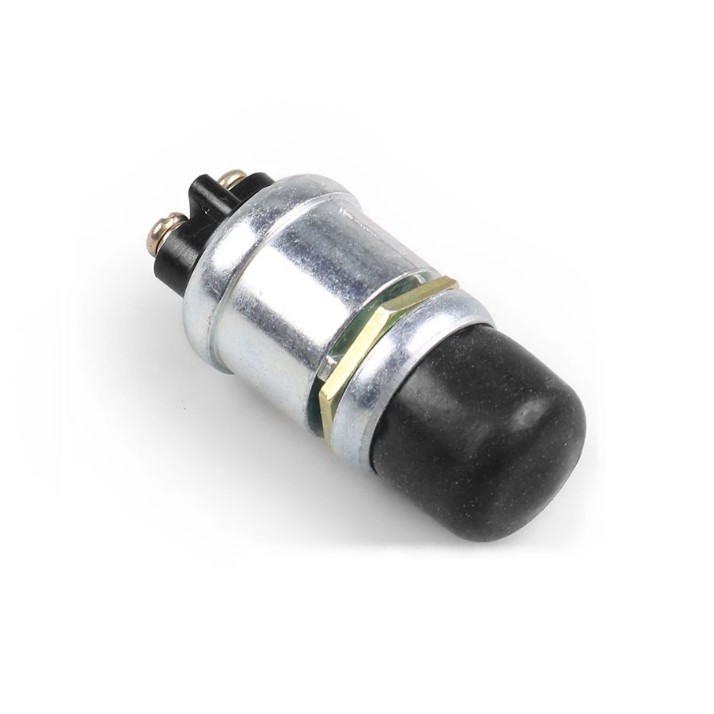

Push button starter switch 12V 50 amps, with soft rubber cap

Code: BP-demarreur-start
Push button starter switch 12V 50 amps, with soft rubber cap
Push button starter switch 12V 50 amps, with soft rubber cap - Image 2
Push button starter switch 12V 50 amps, with soft rubber cap - Image 3
Push button starter switch 12V 50 amps, with soft rubber cap - Image 4
Push button starter switch 12V 50 amps, with soft rubber cap - Image 5

Momentary push button:

  • Widely used for starter and horn
  • Contact type: Momentary
  • Max current: 50 amps
  • No need for relays
  • IP55 sealing
  • 2 screw terminals for connection
  • NO contact: Normally open

11,90€

17 in stock

17 in stock

Share (0)
Total: 0 Total: 0 Total: 0

Push button for starter, horn

Momentary button 50 amps

Thanks to its oversized internal contact, there’s no need to use a relay in your electrical circuit.

This switch can handle currents of over 50 amps and 48 volts.

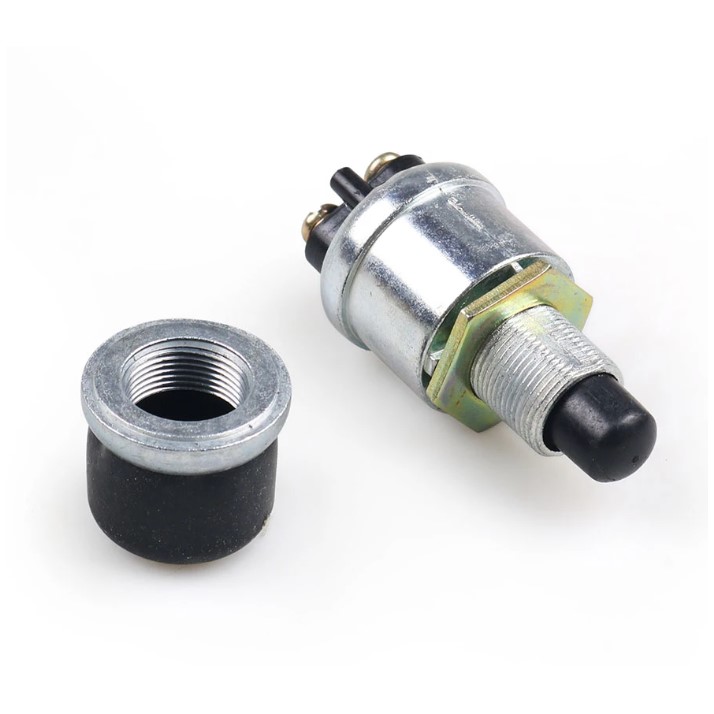

Supplied with a screw-on rubber couple cap for extra waterproofing and a professional look.

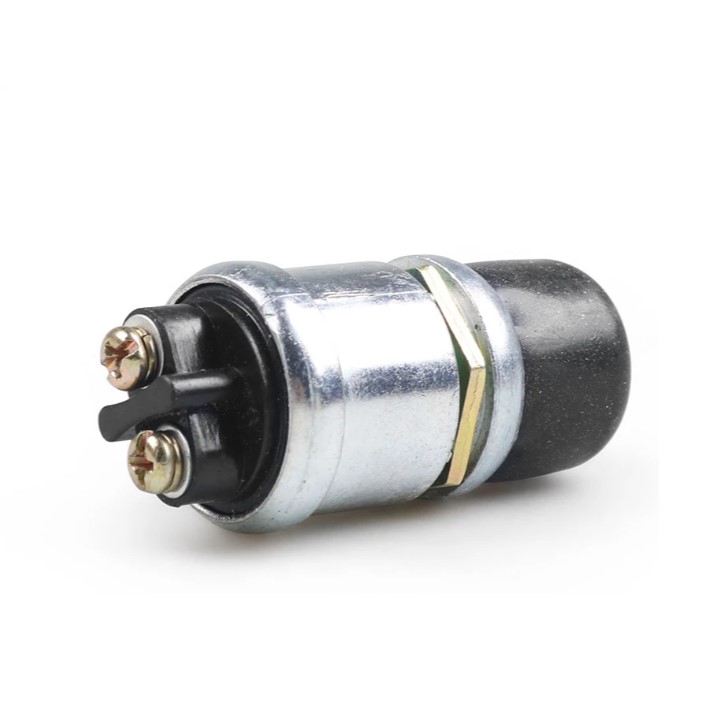

Fitted with 2 screw terminals for electrical connection.

Technical specifications:

  • Maximum current: 50 amps
  • Maximum voltage: 48 Volts

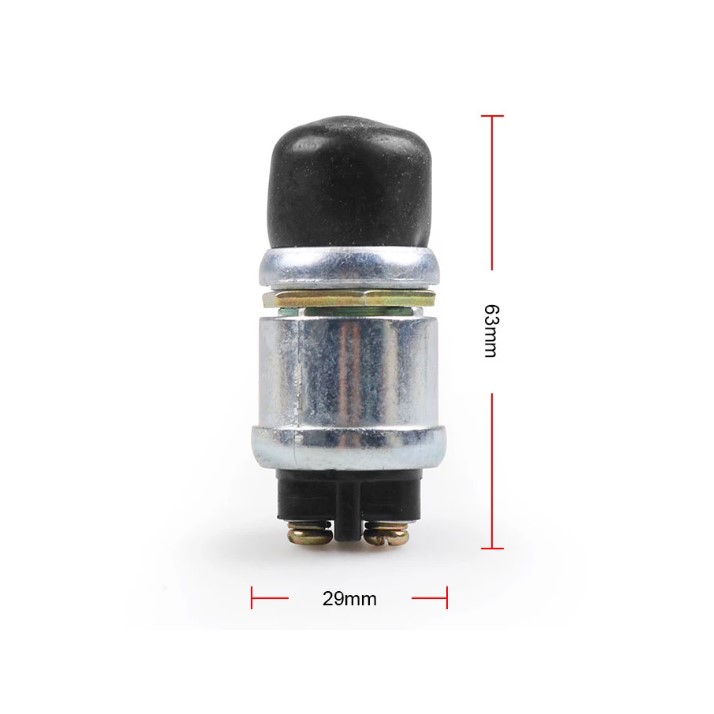

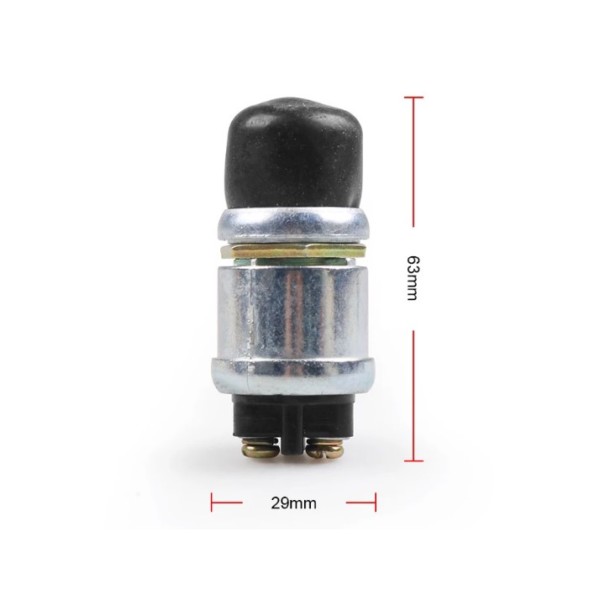

  • Overall length: 63mm
  • Body diameter: 29mm
  • Hole diameter: 16mm
  • IP55 sealing
  • NO contact: Normally open

Widely used for the starter button due to its high current and momentary contact.

Weight 0,1 kg
