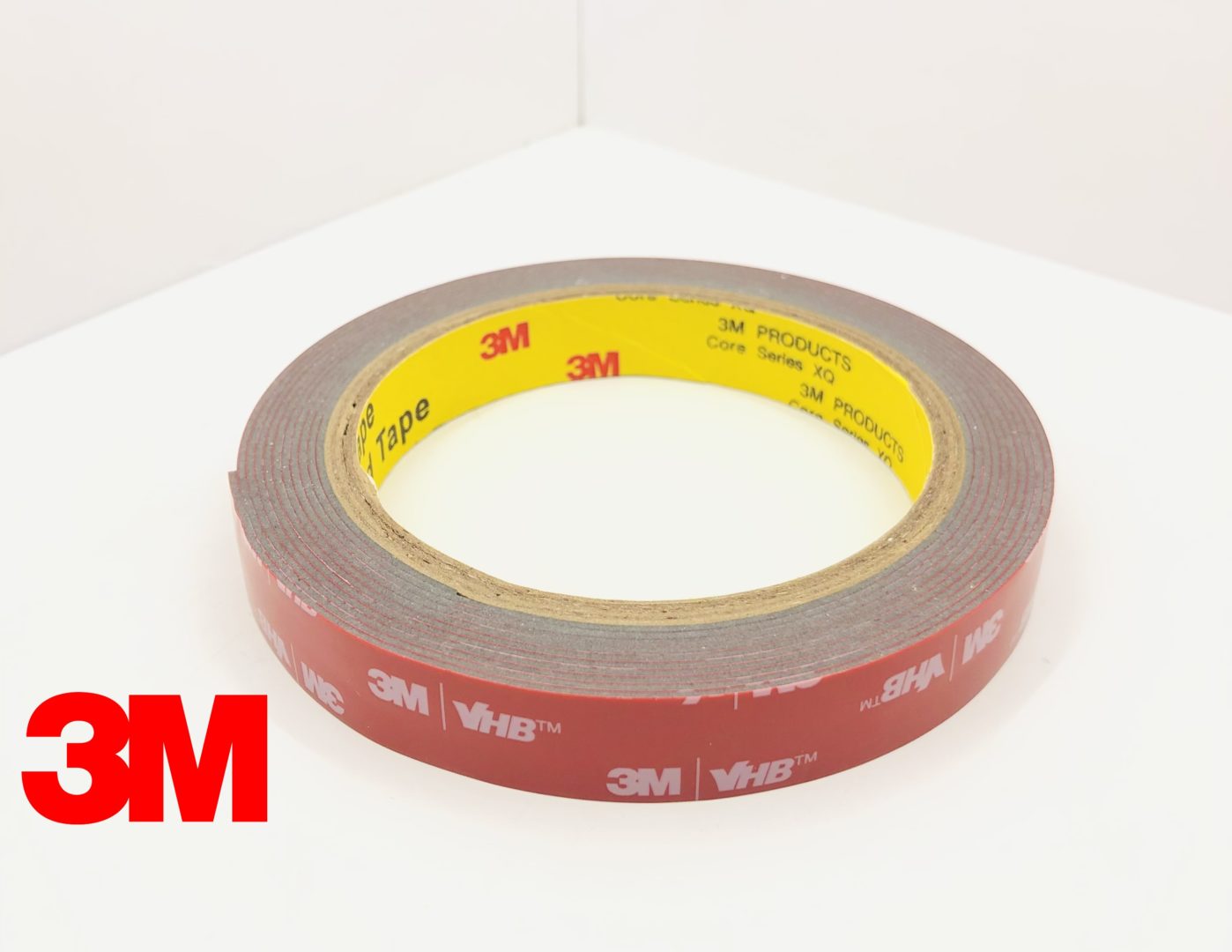

3M “VHB” double-sided structural foam adhesive tape

The ultimate structural adhesive tape

Derived from the aerospace industry, “VHB” adhesive was created to replace riveting.

You can use it for all your assemblies where riveting, screwing or drilling is not possible .Widely used to fix car accessories such as door signs and door strips .

VHB tape is also used in industry to secure and reinforce assemblies with large panels, to reduce play and noise.

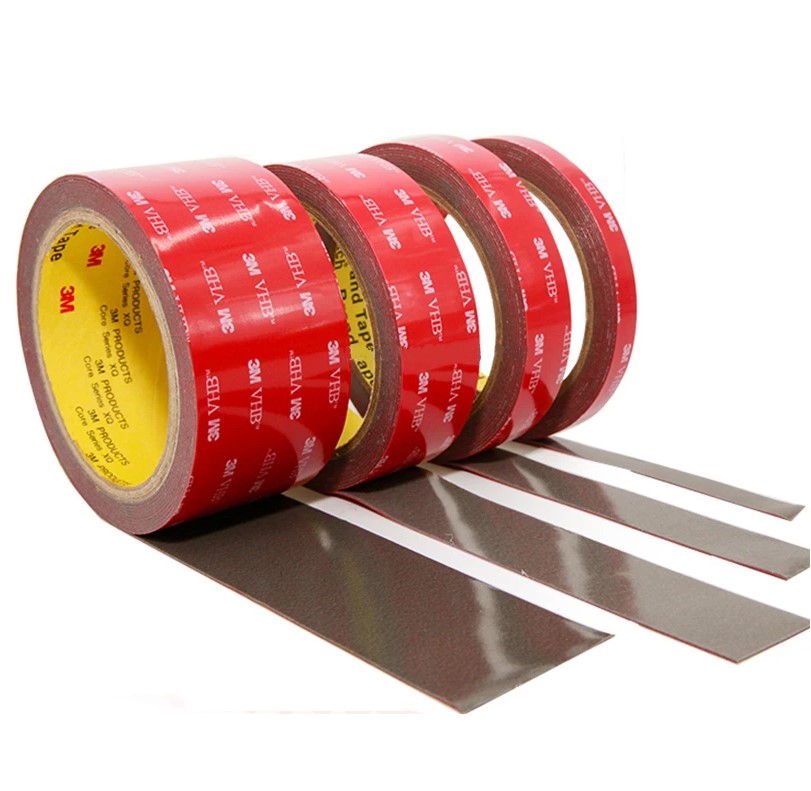

6 widths to choose from:

• 10mm
• 15mm
• 20mm
• 30mm
• 40mm
• 50mm

Installation process for perfect adhesion:

1. Degrease your surface with degreaser, brake cleaner, alcohol or petrol
2. Prepare your surface with 3m 94 primer
3. Apply the tape as required
4. Stamp and apply pressure to the tape
5. Peel off the red protective film
6. When finished, you can affix your object to the second side

Specificity of 3M VHB 5952: Mechanical tensile strength 5kg/cm2

• Technical specifications:

  • Manufacturer reference: 3M 5952
  • Roll length: 3 metres
  • Thickness: 1mm
  • Choice of widths from 10 to 50mm
  • Colour: dark grey
  • Drying time 50%: 20 minutes
  • 100% dry: 24 hours
  • Great flexibility of use
  • Material: Acrylic foam
  • Maximum application temperature: +105°C
  • Minimum temperature of use: -5°C
  • Expansion factor: 55% of its original size

We recommend that you do not install the VHB double-sided tape when the ambient temperature is below 5°C.

For a perfect result, you can prepare your surface with 3M 94 primer for adhesive tapes.
